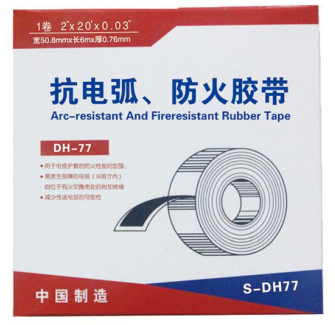

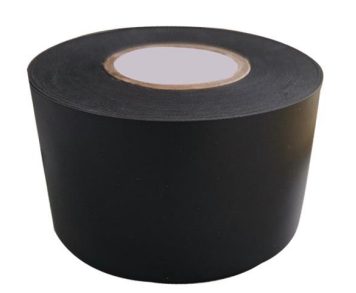

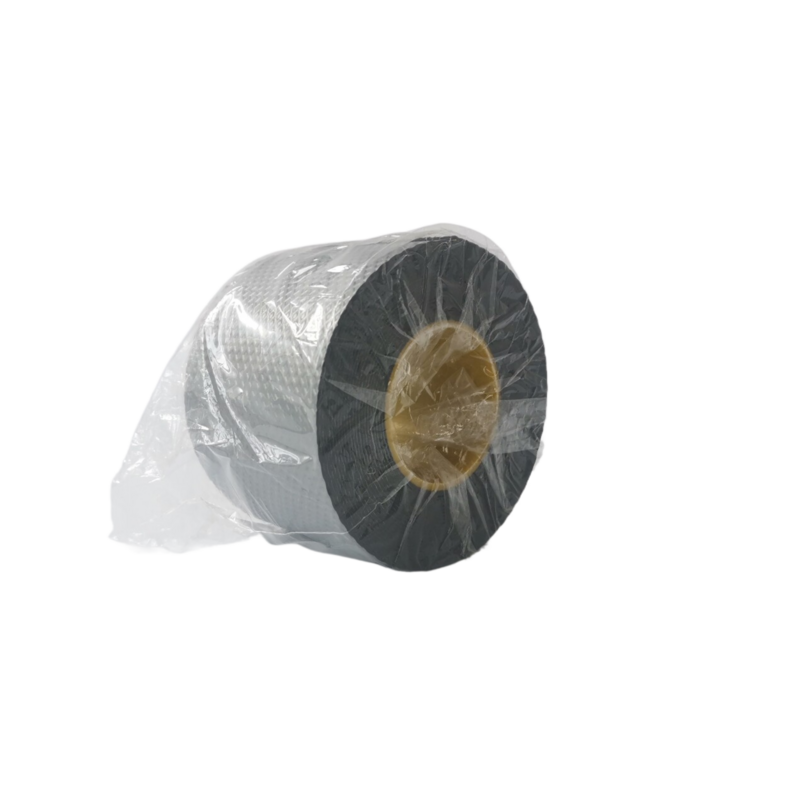

Arc-resistant And Fire-resistant Rubber Tape

Code: XF-DH-77

Color: Black

XF-DH-77 Fireproof tape is a new kind of fireproof and flame-retardant product used in power cables and communication cables. Smooth texture, easy to use, can easily achieve a complete,non-fold package. Provide fault arc protection for adjacent cables and accessories, forming a barrier firewall between flame and cable. Self-extinguishing, flame resistant, waterproof, acid resistant, stain resistant, salt resistant, UV resistant.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Suitable for high and low power supply lines especially power plants, substations, subways, cable tunnels, communications, metallurgy chemicals, large public places, and other environments of cable fire, can also be used for other parts with fire requirements. The fireproof belt shall be properly stretched and wrapped on the fireproof part of the cable in the form of a 1/2semi cover. The length of the lap shall meet the requirements of the design department. At the end of wrapping, stretch the fireproof wrapping beltvigorously, and double wrapping with glass fiber.

PRODUCT Technical indicators

SPECIFICATIONS： XF-DH-77
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Thickness	0.76	mm	ASTM-D-1000
Tensile Strength	40	ibs/inch	ASTM-D-1000
Elongation at break	300	%	ASTM-D-1000
Flame resistance	PASS	---	ASTM-D-162
Oxgen index	30.2%	---	ASTM-D-2863
Electrical property
Dielectric Strength	15	kV/mm	ASTM-D-1000
Volume Resistivity	4.4x10⁴	Ohm-cm	ASTM-D-4325
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
