PRODUCT APPLICATION
Specialized for wire winding and other electrical insulation applications. Wrap it in a semi-overlapping manner when using it. When winding the last layer, do not over-stretch to prevent squatting.
PRODUCT Technical indicators
|
SPECIFICATIONS： XF-13 |
|||
|
PROPERTY |
VALUE |
UNIT |
TEST METHOD |
|
Physical property |
|||
| Total Thickness | 0.13 | mm | ASTM-D-1000 |
| Tensile Strength | 18 | N/cm | ASTM-D-1000 |
| Elongation at break | 150 | % | ASTM-D-1000 |
| Voltage resistance | 600 | V | UL510 |
| Temperature Resistance | 80 | ℃ | ASTM-D-1000 |
| Adhesion Strength | |||
| Dielectric Strength |
1.5 |
N/cm | ASTM-D-1000 |
| Volume Resistivity | 1.4 | N/cm | ASTM-D-1000 |
| Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use. | |||
| Code | Total thickness(mm) | Tensile Strength(N/cm) | Elongation at break(%) | to steel(N/cm) | to backing(N/cm) | Voltage resistance | Temperature Resistance(℃) |
| XF-18 | 0.18 | 28 | 300 | 1.5 | 1.4 | 600 | 80 |
PRODUCT General specifications
| STANDARD SIZES: | ||
|
Width |
Length |
Thickness |
|
19mm |
20m | 0.13mm |
| Other sizes and cores are available. Contact factory | ||

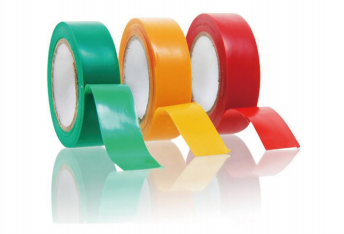

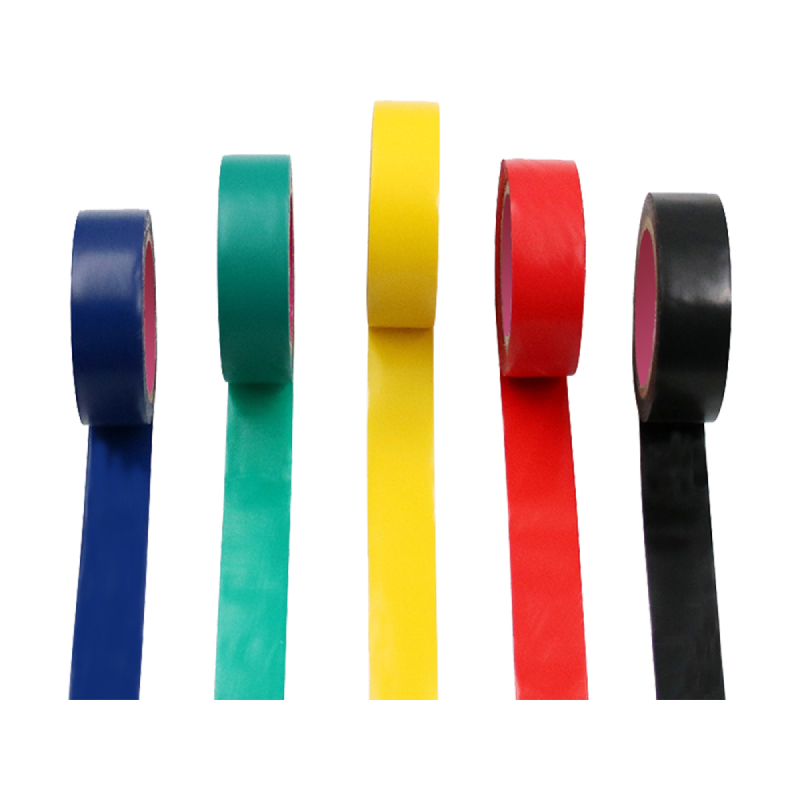

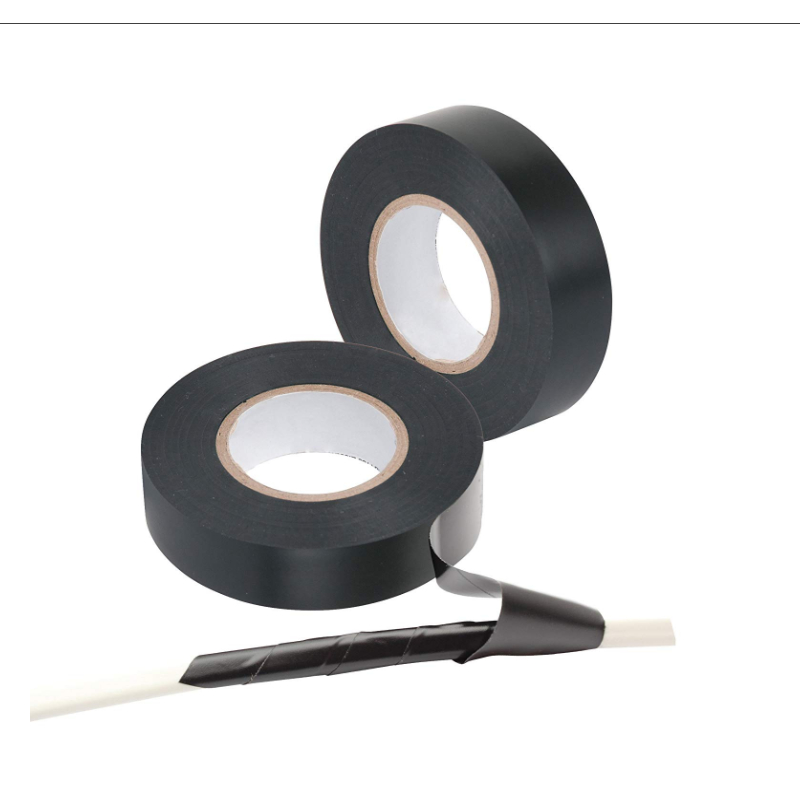

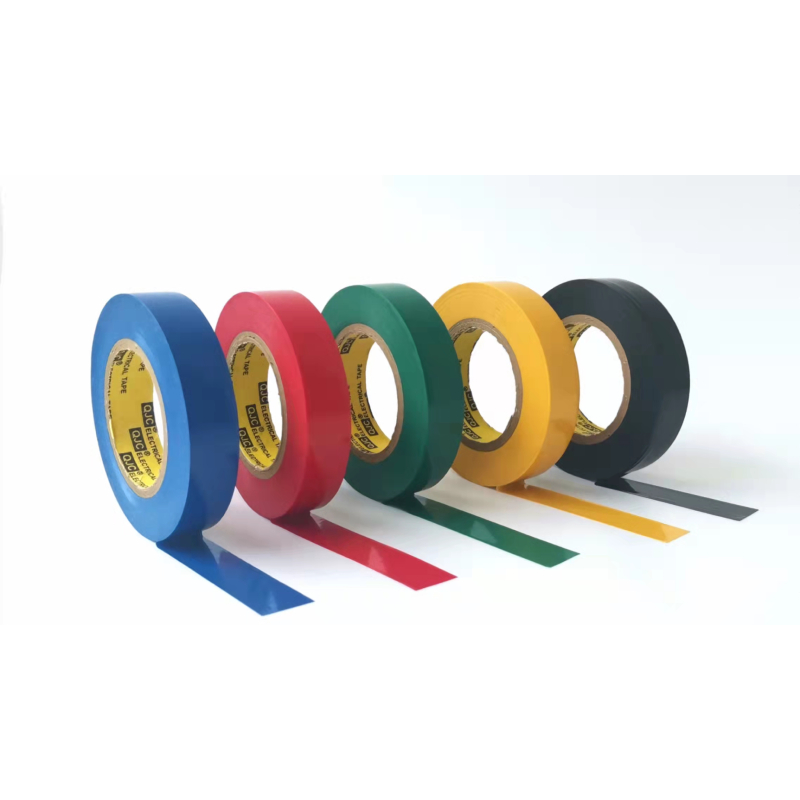

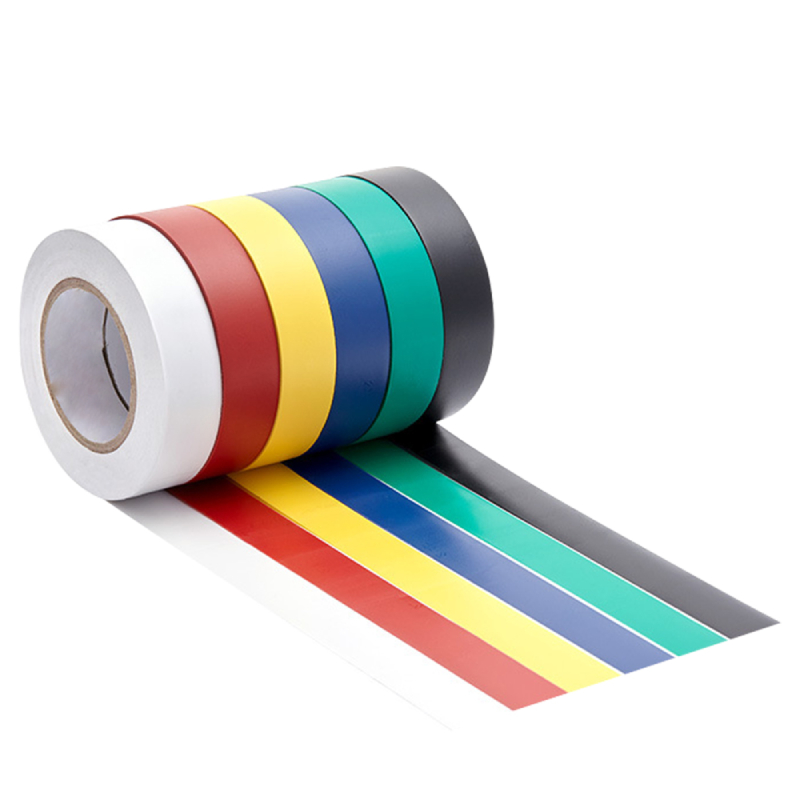

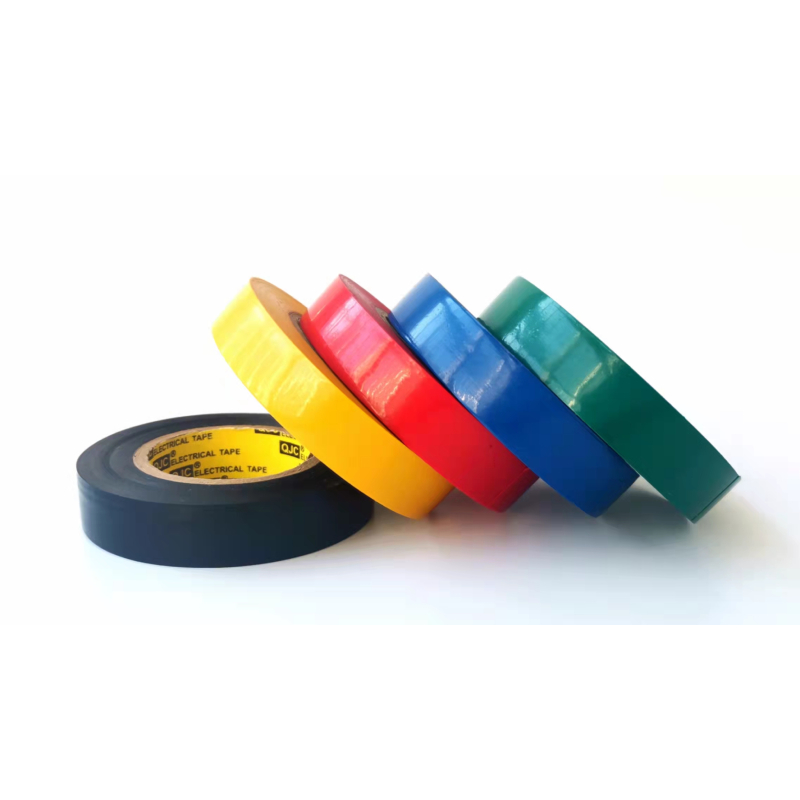

PRODUCT DISPLAY

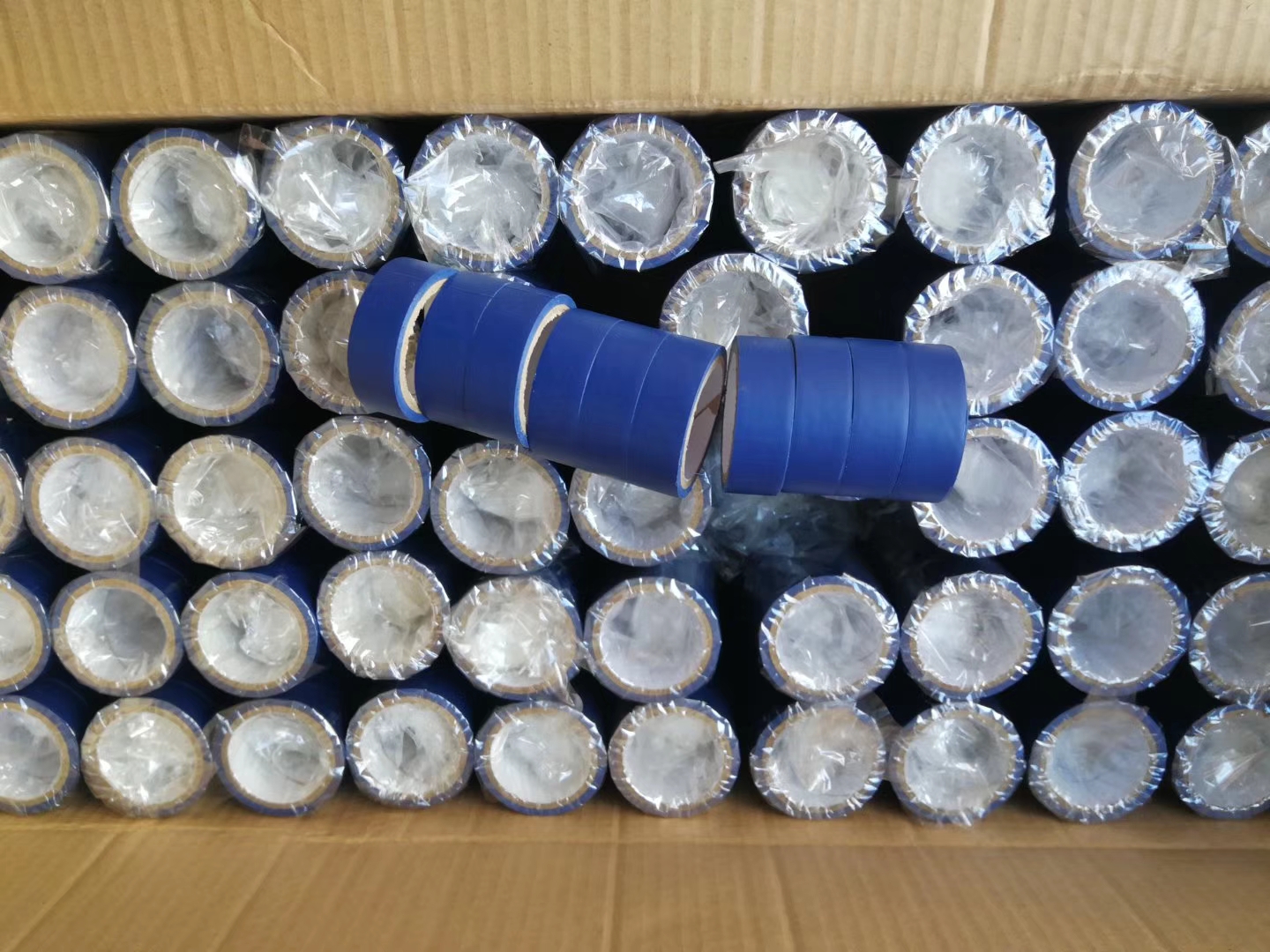

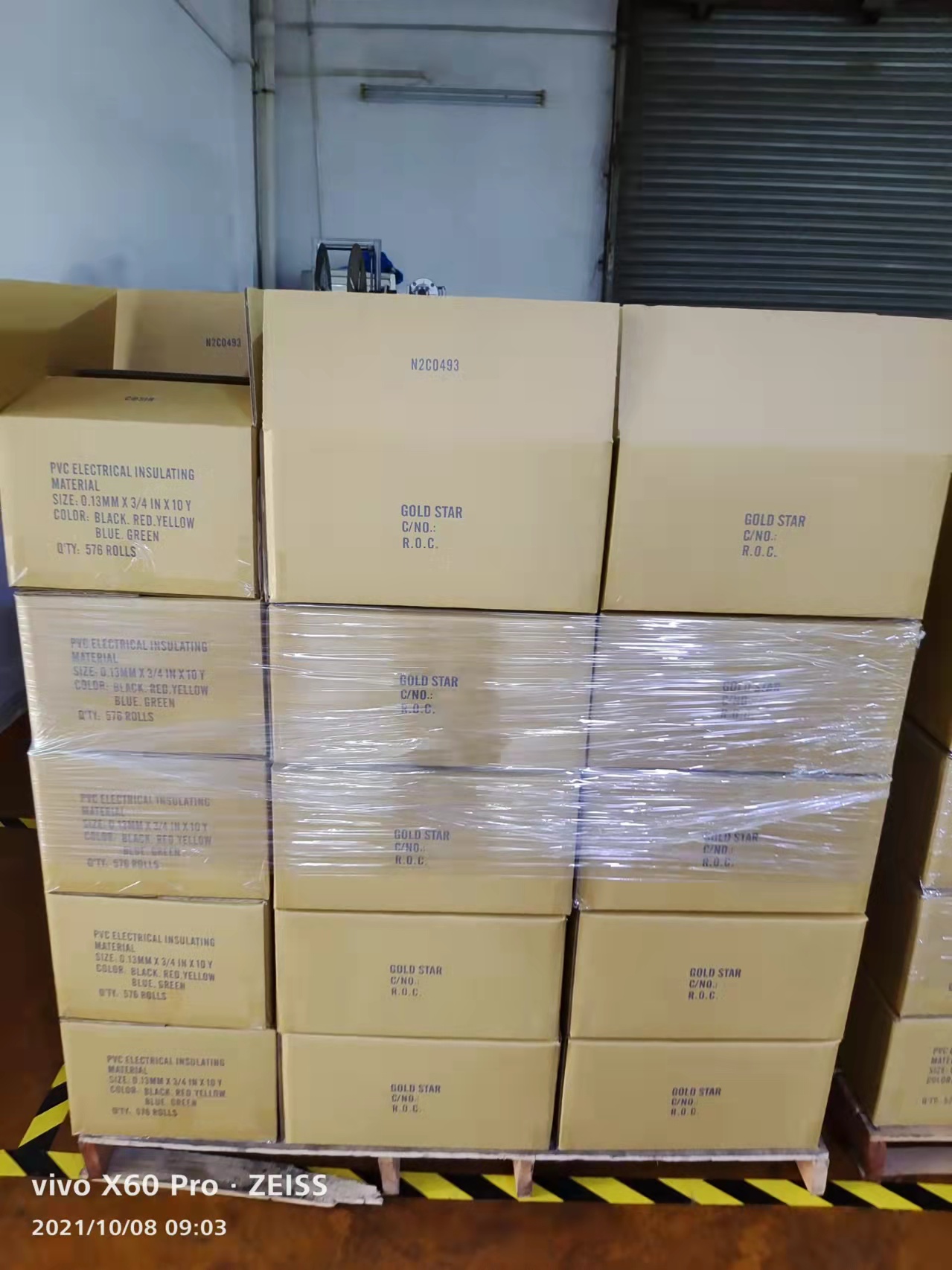

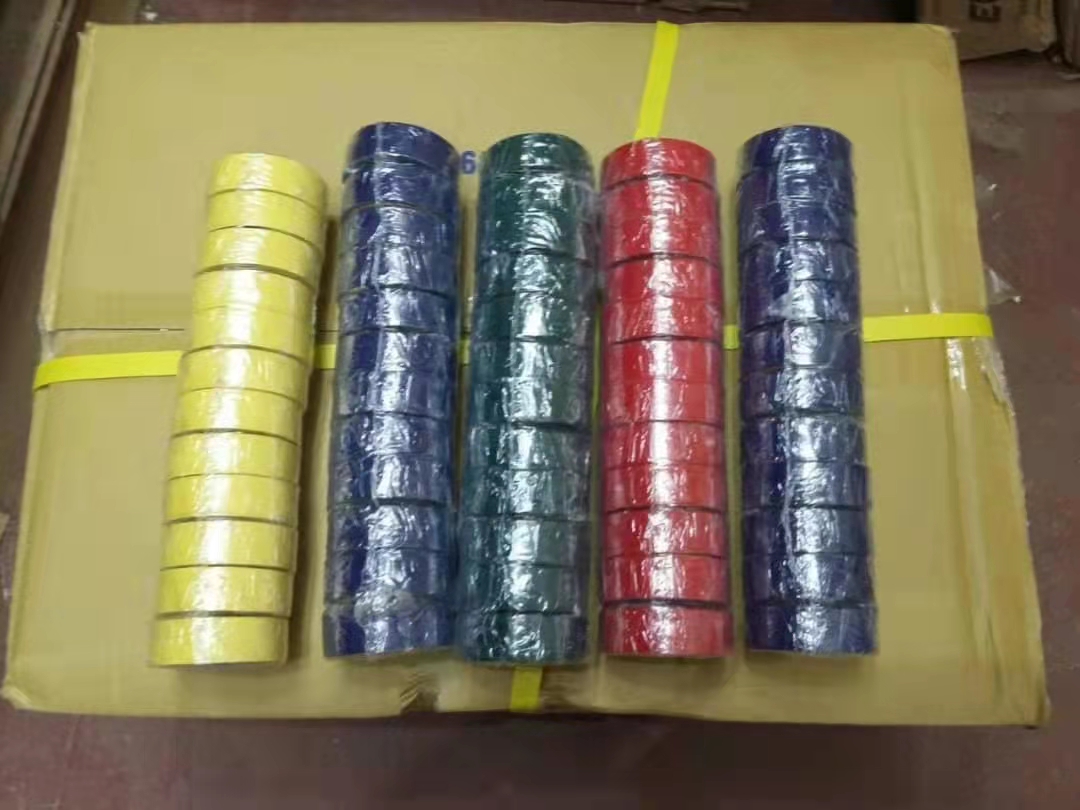

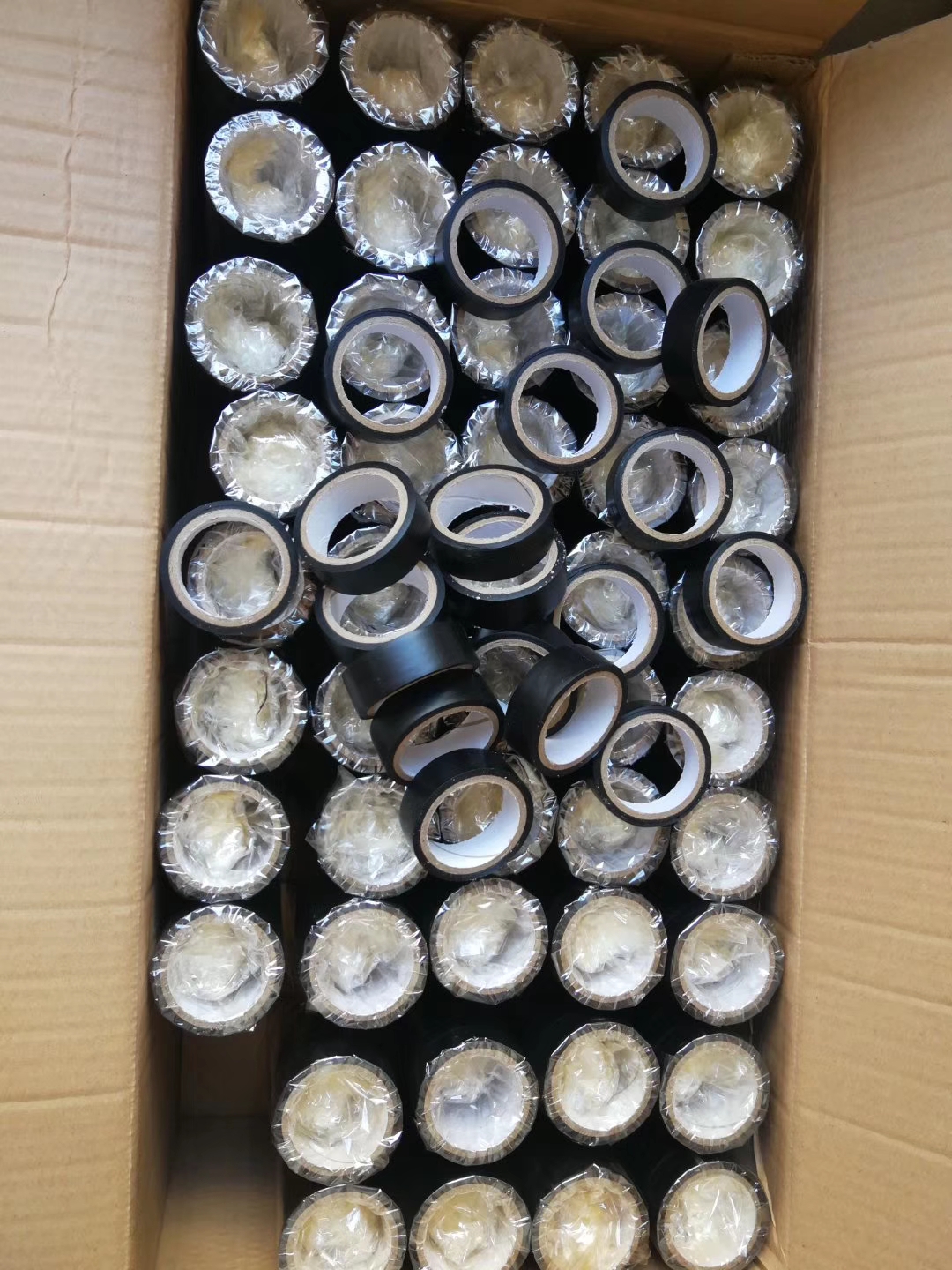

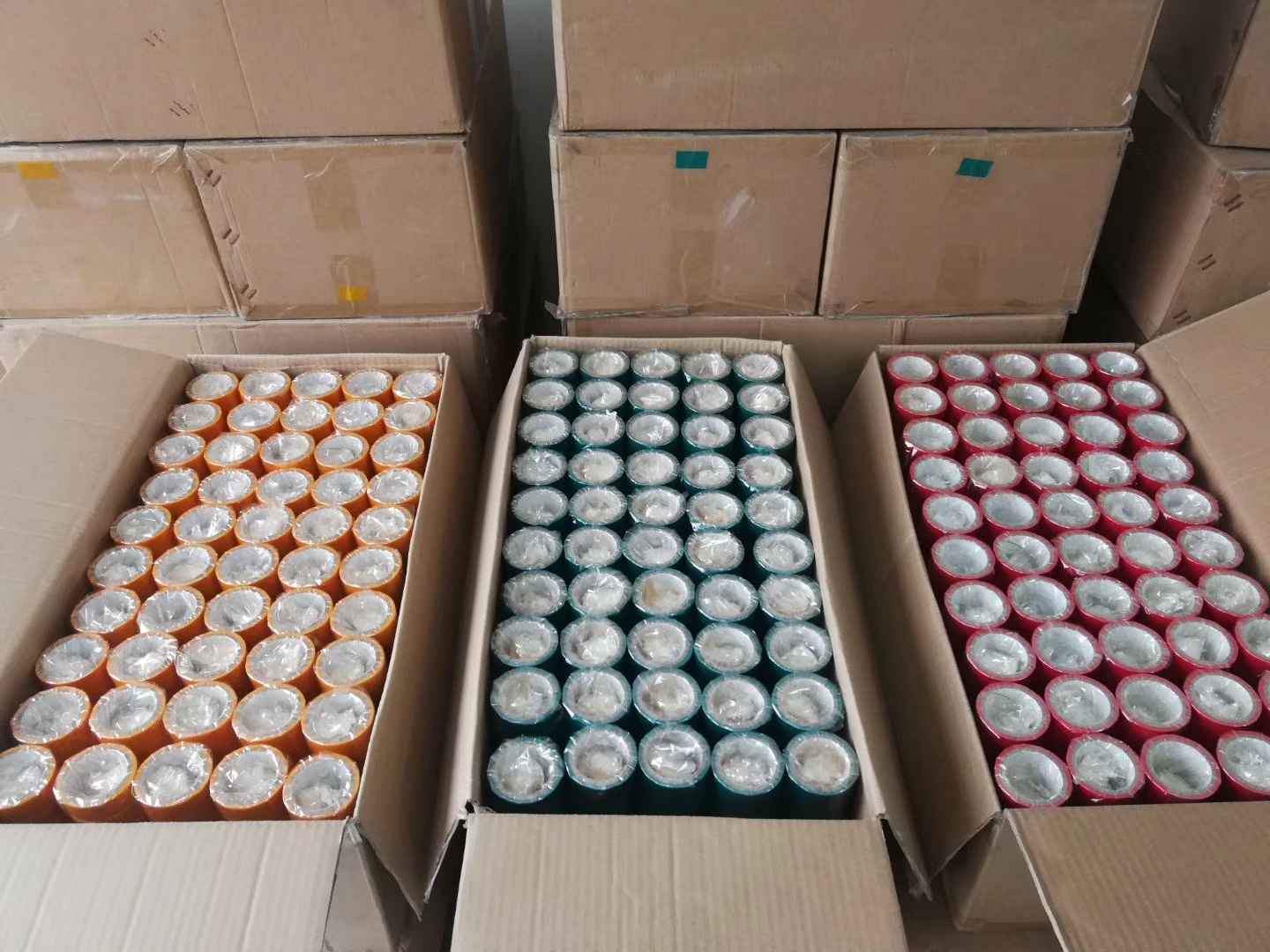

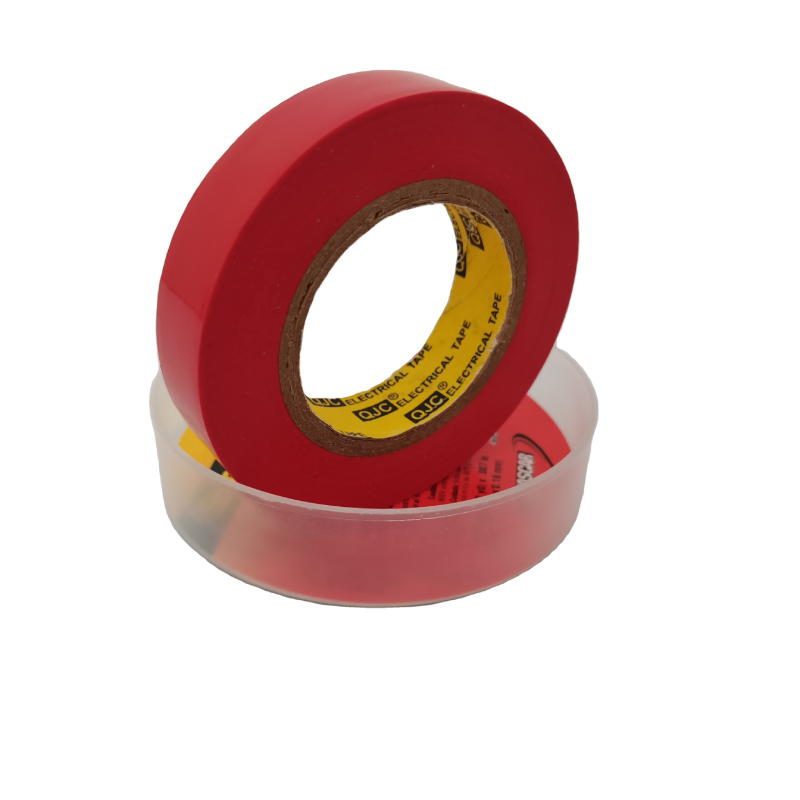

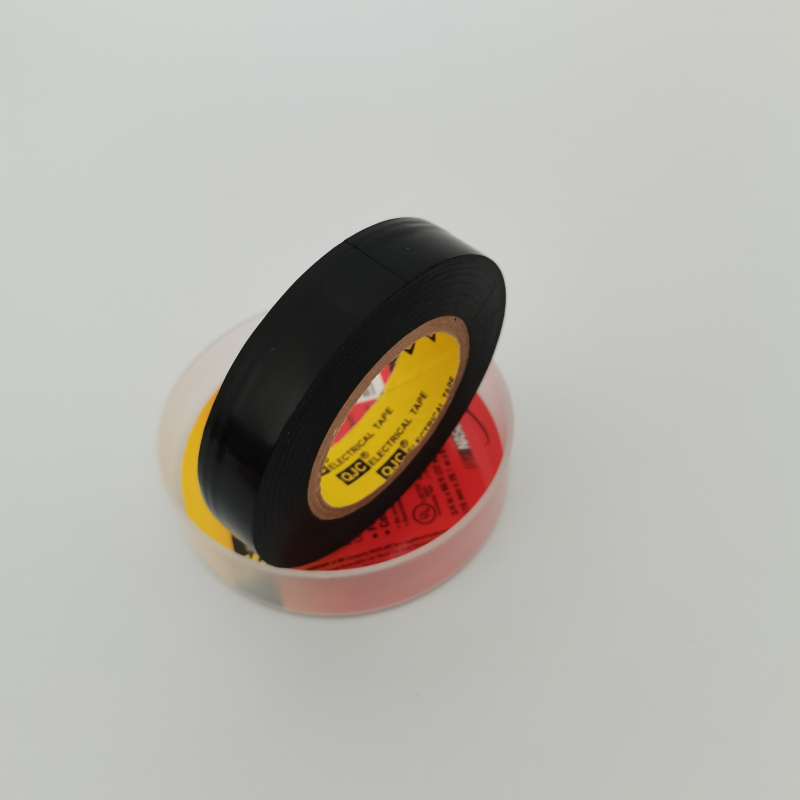

PRODUCT PACKAGE
