PRODUCT APPLICATION
Professional for automobile wire harness winding and bundling. It is best to wrap it in a semi-overlapping way. When wrapping the last layer, do not overpull it stretch, in case you tilt your head.
PRODUCT Technical indicators
|
SPECIFICATIONS： XF-110 |
|||
|
PROPERTY |
VALUE |
UNIT |
TEST METHOD |
|
Physical property |
|||
| Total Thickness | 0.11 | mm | ASTM-D-1000 |
| Tensile Strength | 16 | N/cm | ASTM-D-1000 |
| Elongation at break | 180 | % | ASTM-D-1000 |
| Voltage resistance | 1kV/1min |
--- | JIS-C2110 |
| Temperature Resistance | 85 | ℃ | ASTM-D-1000 |
| Adhesion Strength | |||
| Dielectric Strength |
1.2 |
N/cm | ASTM-D-1000 |
| Volume Resistivity | 1.0 | N/cm | ASTM-D-1000 |
| ContentofHeavy Metal | |||
| Lead、Cadmium | 30 | ppm | US EPA3052 |
| Mercury、Chromium | 10 | ppm | US EPA3060A |
| Polybrominated biphenyl | 10 | ppm | US EPA3540C |
| Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use. | |||
|
Code |
Total thickness(mm) | Tensile Strength(N/cm) | Elongation at break(%) | Adhesion Strength to steel(N/cm) | Adhesion Strength to backing(N/cm) | Voltage resistance | Temperature Resistance(℃) |
| XF085 | 0.085 | 16 | 160 | 1.2 | 1.0 | 1kV/1 min | 85 |
| XF100 | 0.10 | 16 | 170 | 1.2 | 1.0 | 1kV/1 min | 85 |
| XF120 | 0.12 | 16 | 200 | 1.2 | 1.0 | 1kV/1 min | 85 |
| XF130 | 0.13 | 20 | 220 | 1.2 | 1.0 | 1kV/1 min | 85 |
PRODUCT General specifications
| STANDARD SIZES: | ||
|
Width |
Length |
Core |
|
19mm |
9m | 38mm |
|
19mm |
20m | 38mm |
|
19mm |
20m | 32mm |
| Other sizes and cores are available. Contact factory | ||

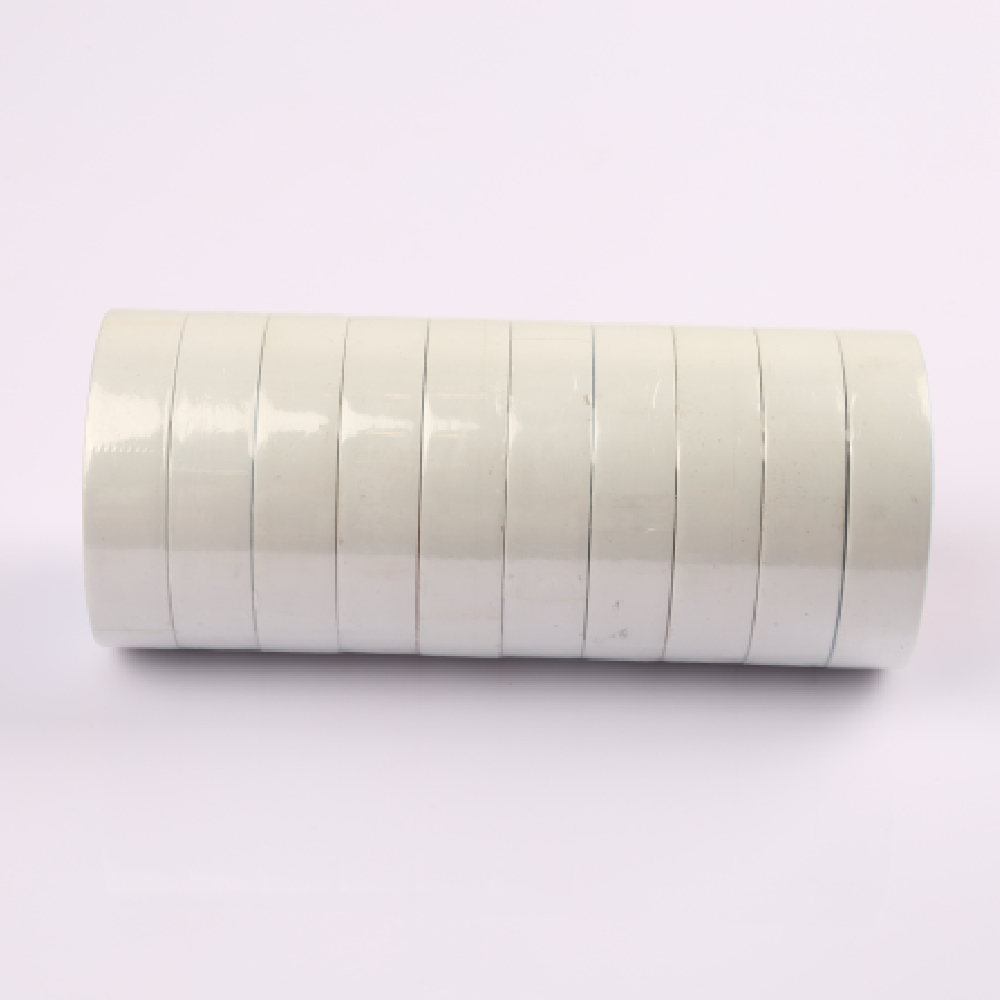

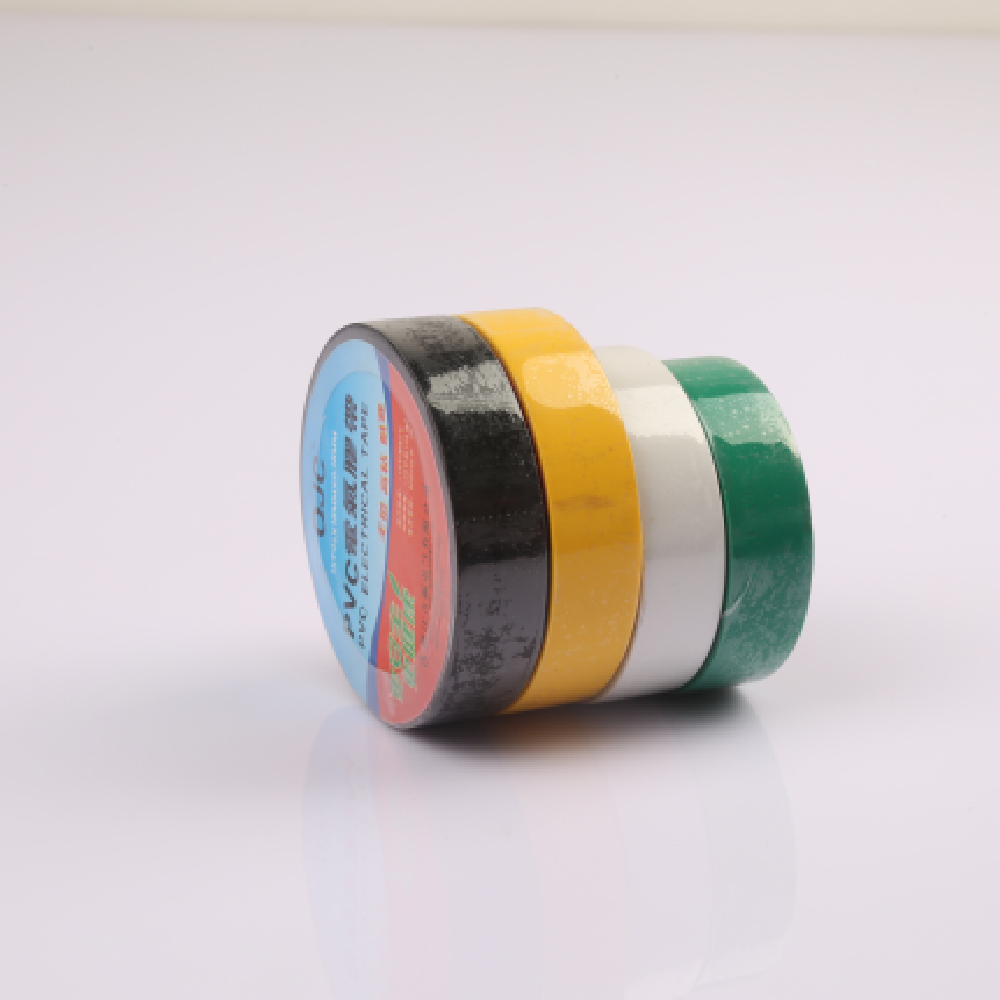

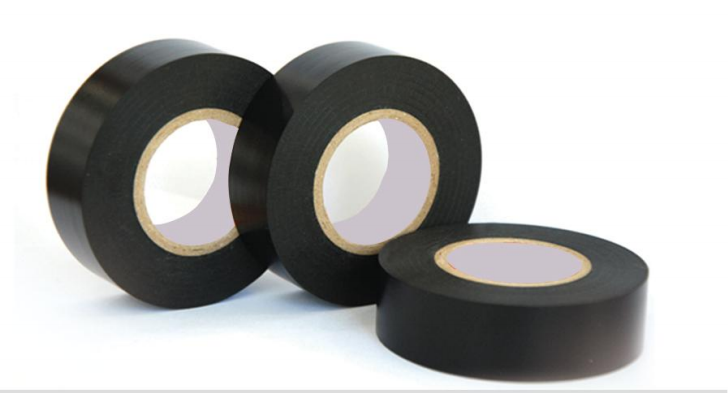

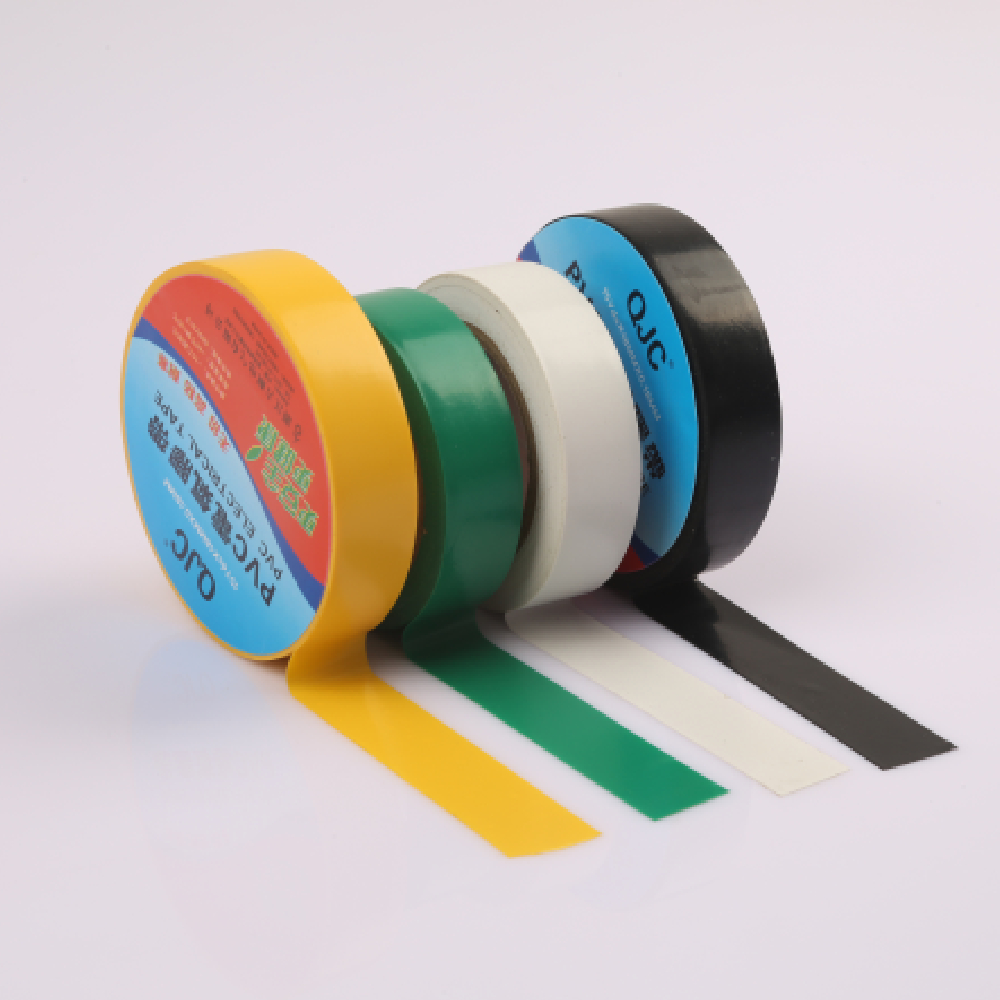

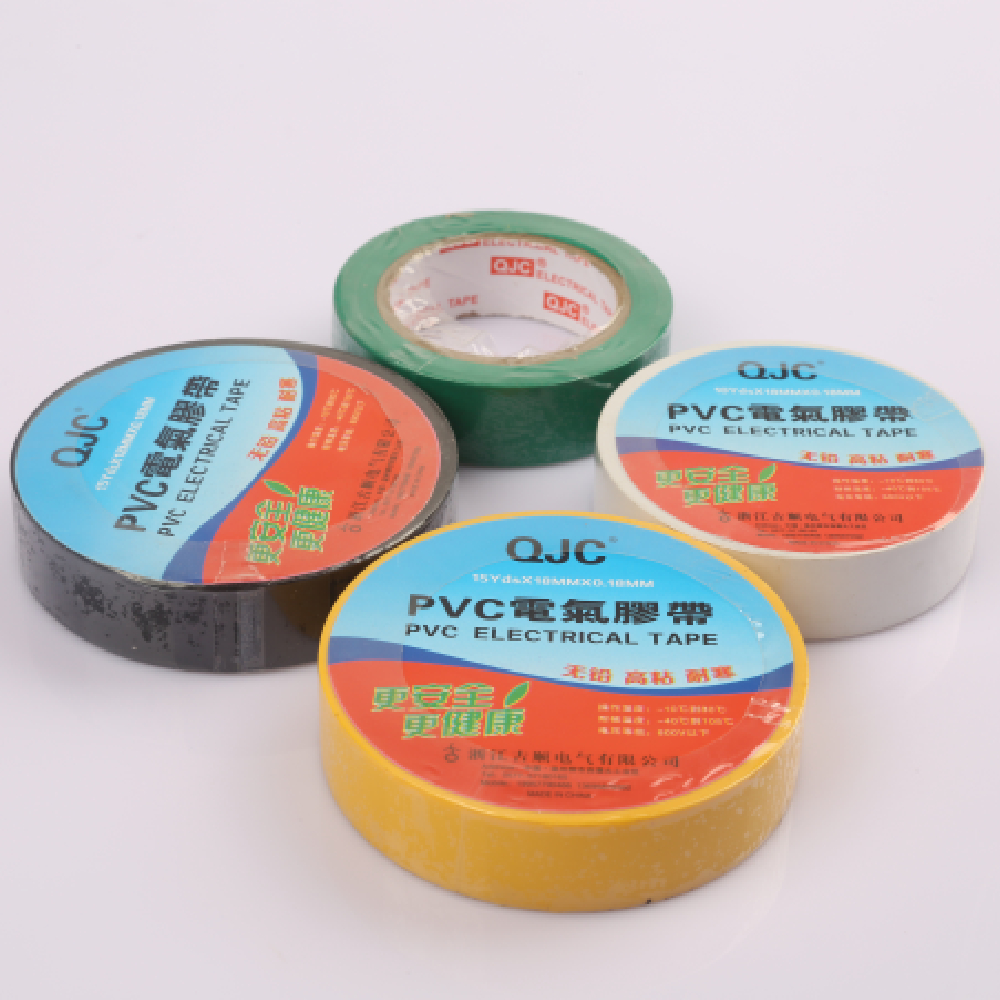

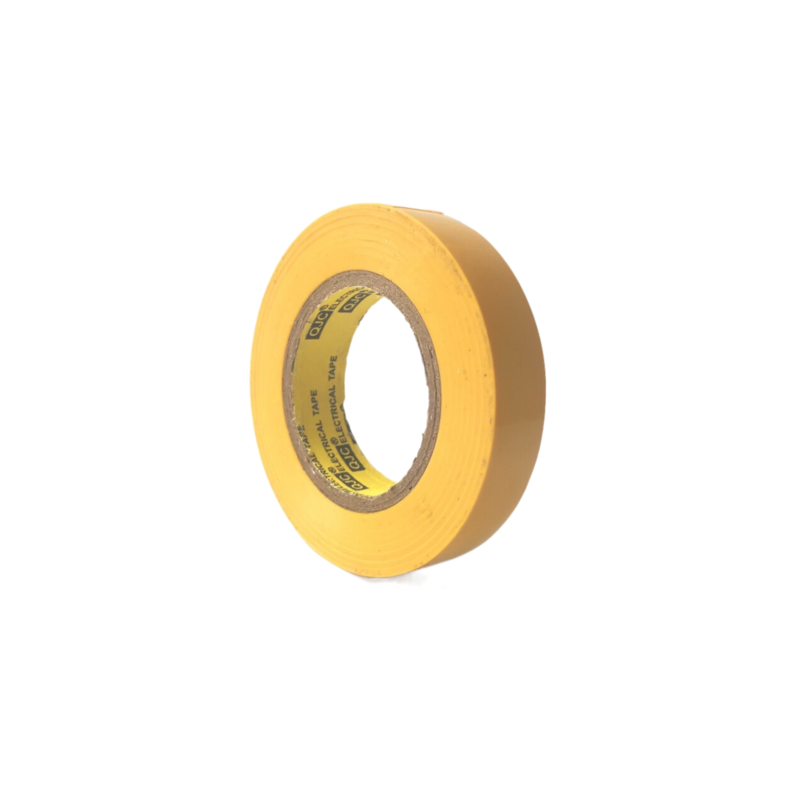

PRODUCT DISPLAY

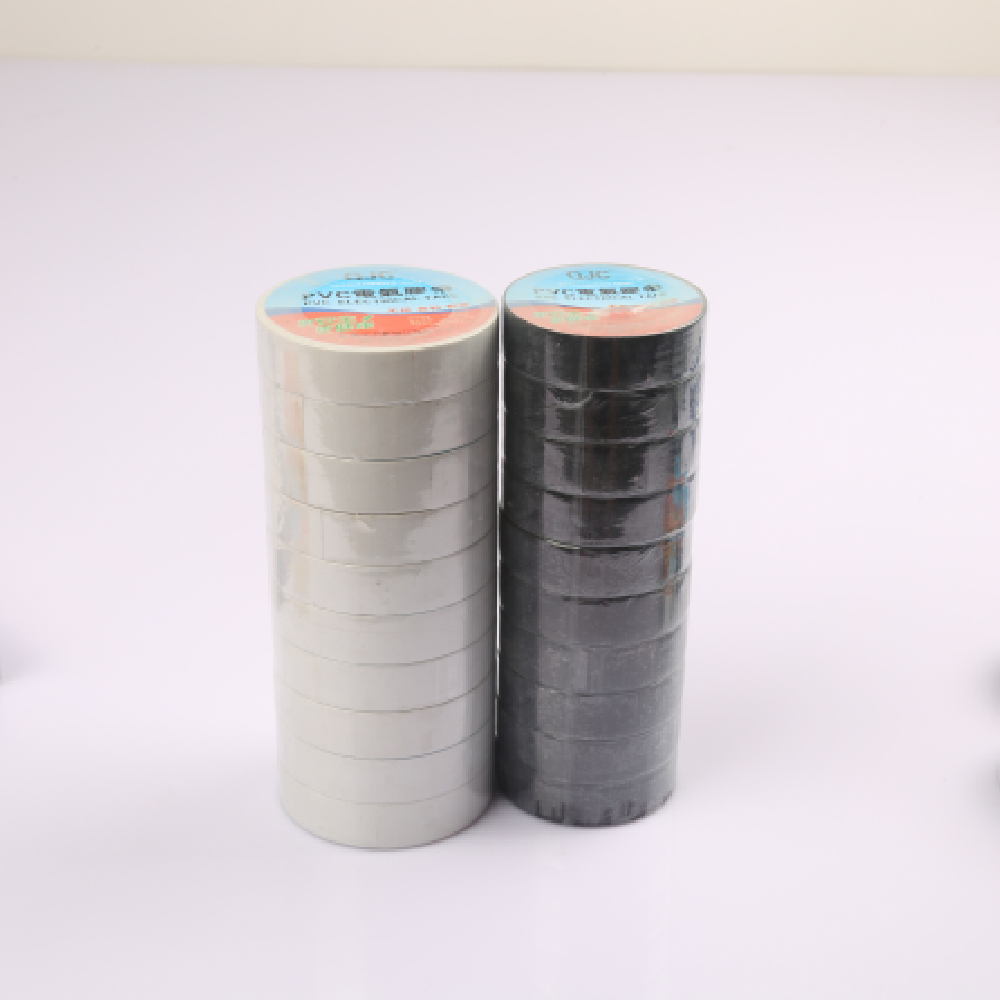

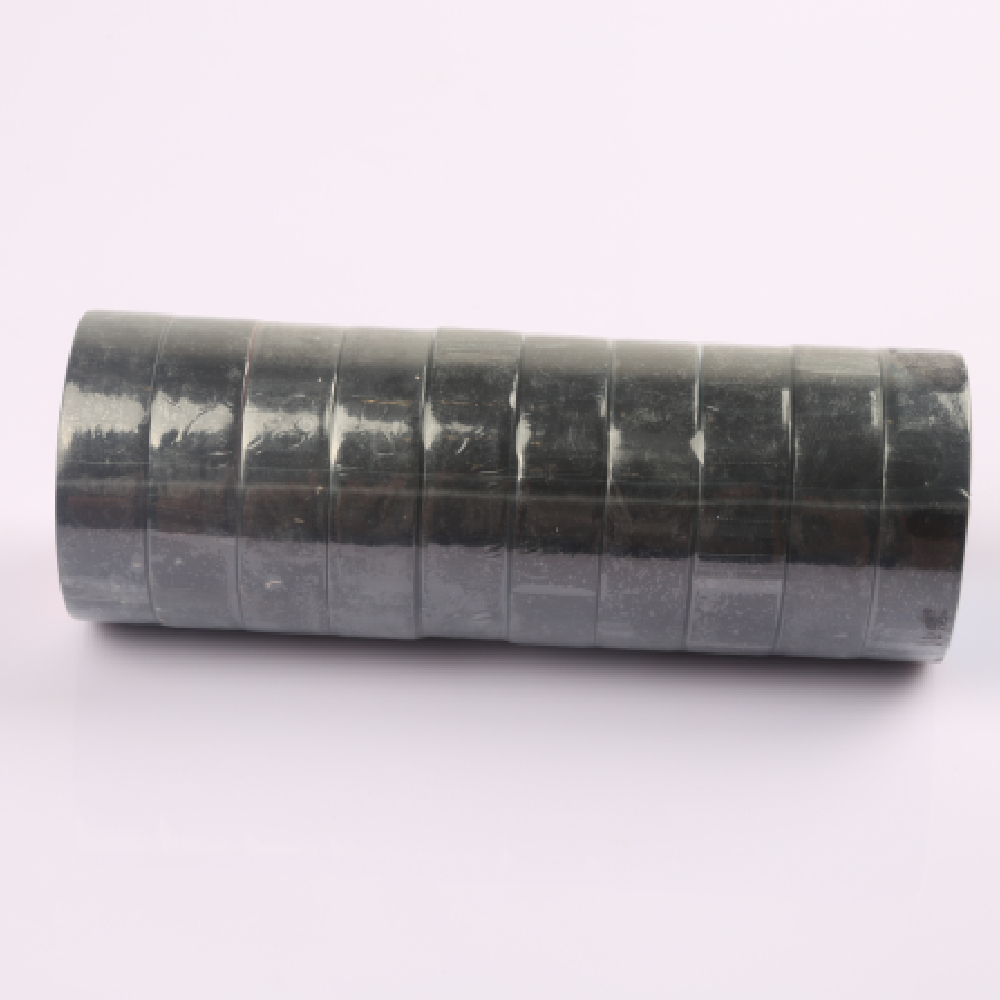

PRODUCT PACKAGE
