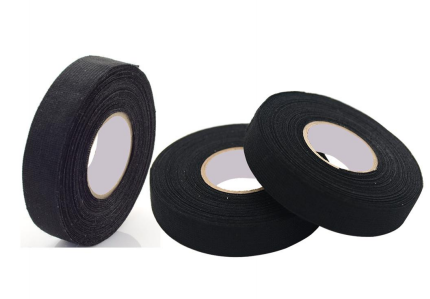

Automotive Polyester Fabric Tape

Code: XF-FT

Color: Black

XF-FT high-quality fabric with strong pressure-sensitive adhesive.Good temperature, oil, and plasticization resistance. tear resistance, corrosion, and wear resistance.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Specially designed for automotive wiring harness wrapping, it is an ideal product for engine parts wiring harnesses.

PRODUCT Technical indicators

SPECIFICATIONS： XF-FT
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Total Thickness	0.25	mm	ASTM-D-1000
Tensile Strength	200	N/cm	ASTM-D-1000
Elongation at break	15	%	ASTM-D-1000
180℃ peel strength to steel	2.5	N/cm	ASTM-D-1000
Temperature Resistance	-40~150	℃	VW60360(LV312)
Unwind force	2-6	N/cm	ASTM-D-1000
Abrasive resistance	1000	Times	VW60360(LV312)
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
