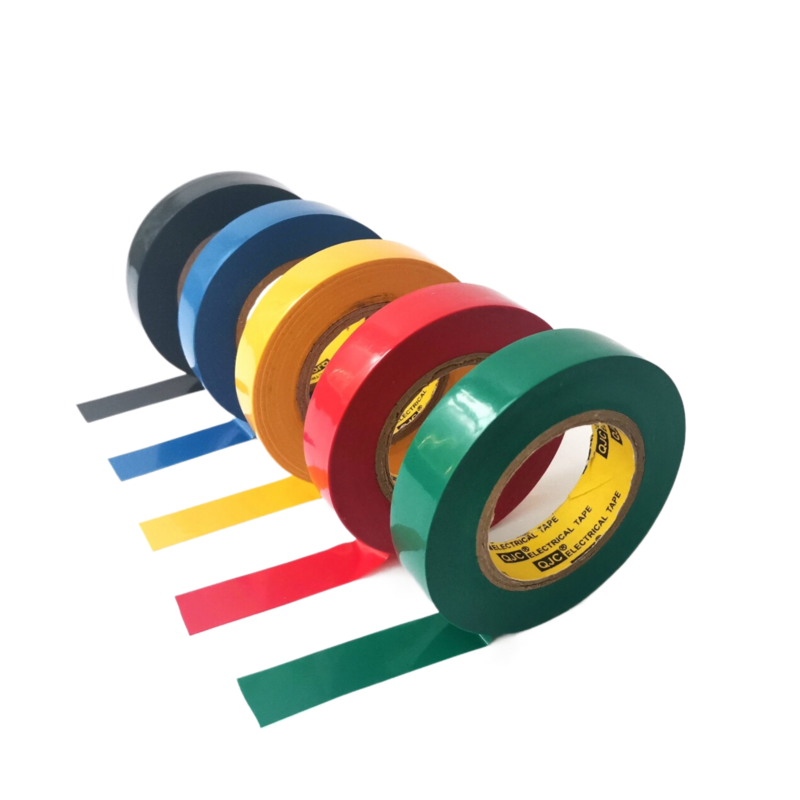

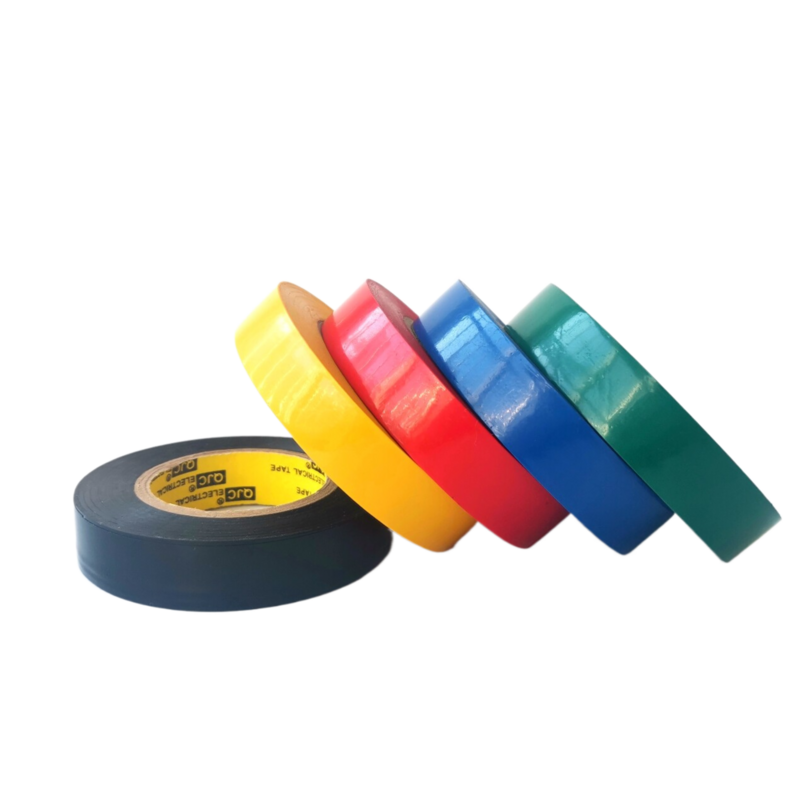

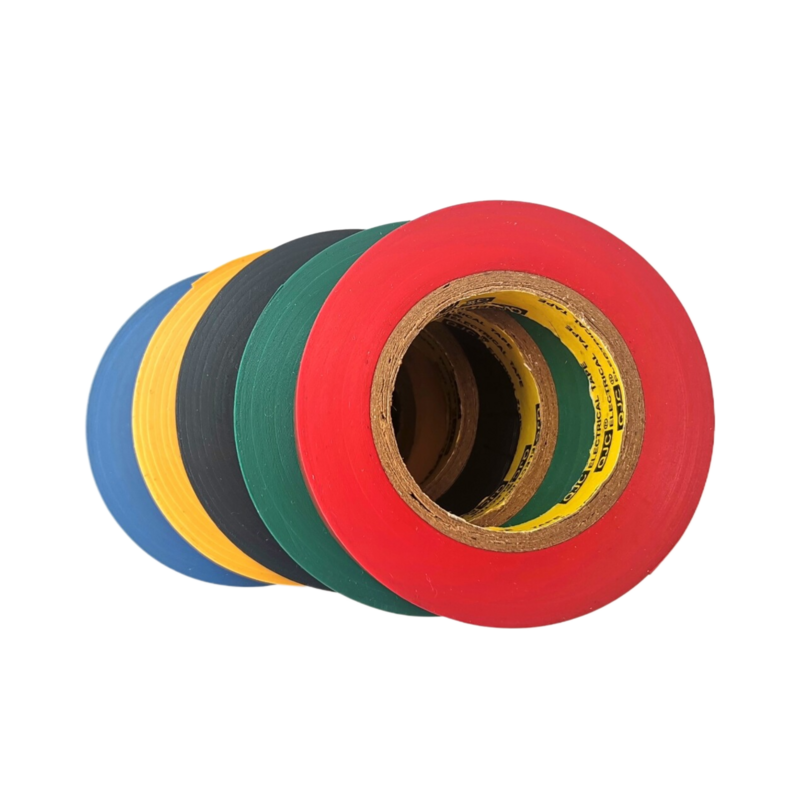

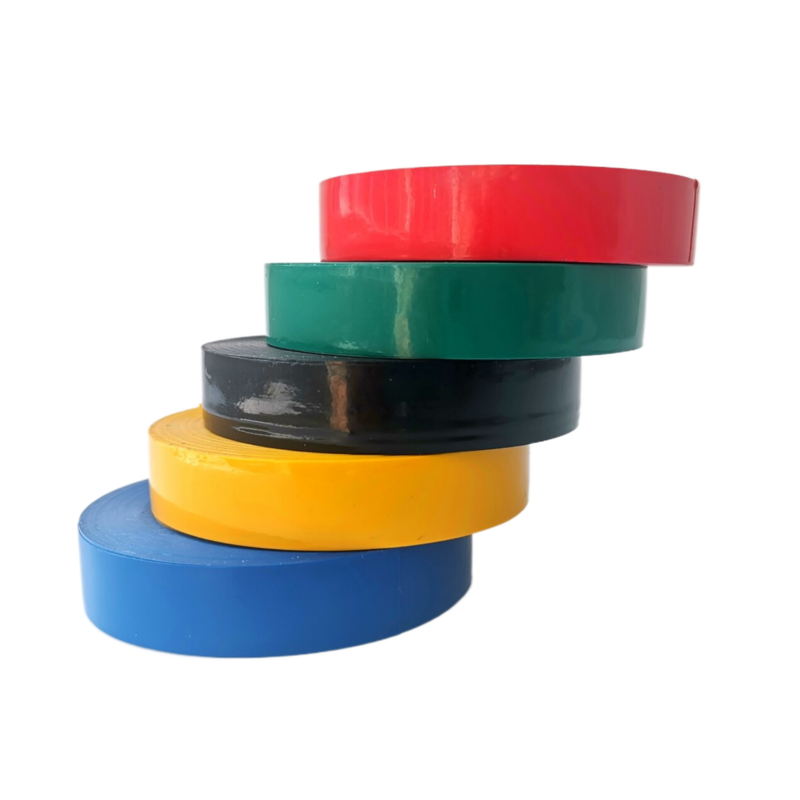

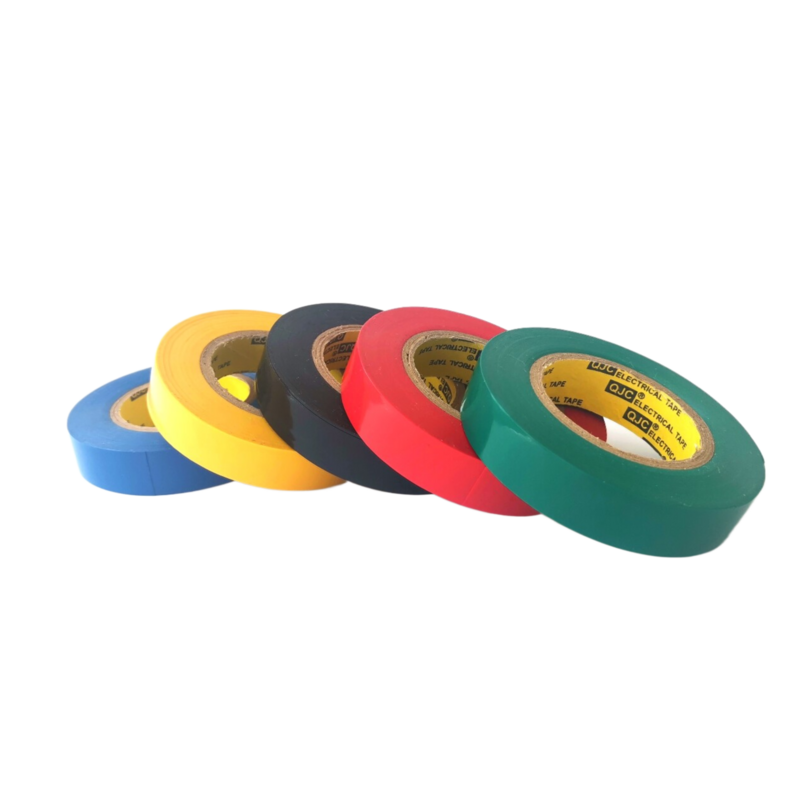

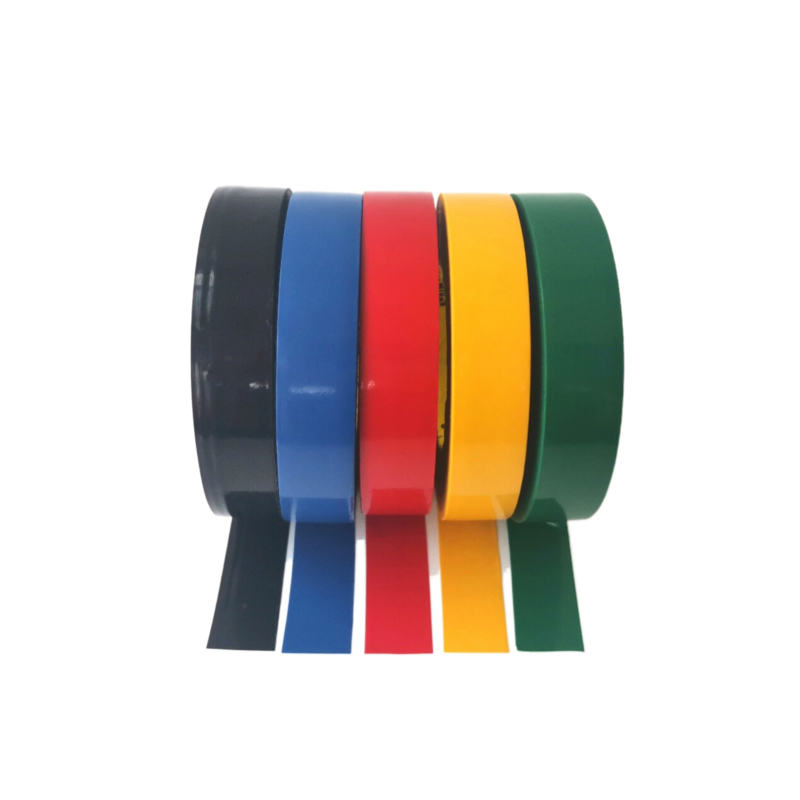

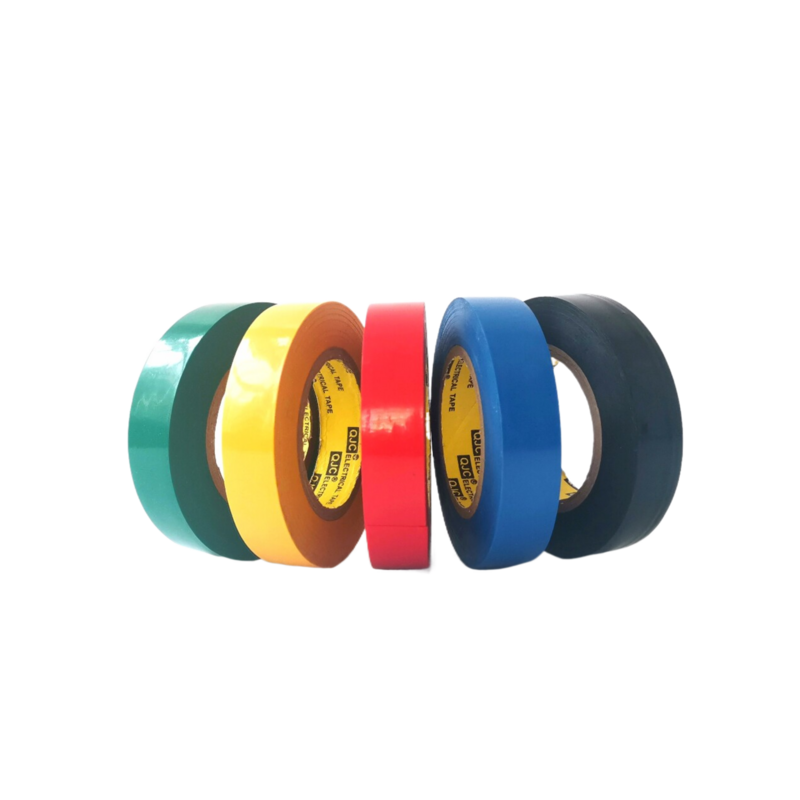

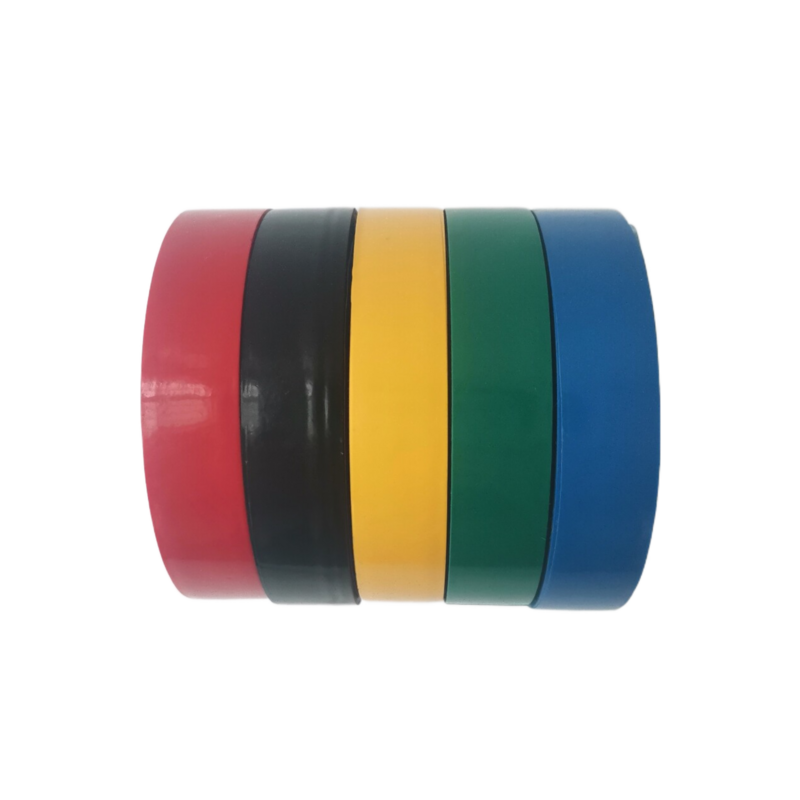

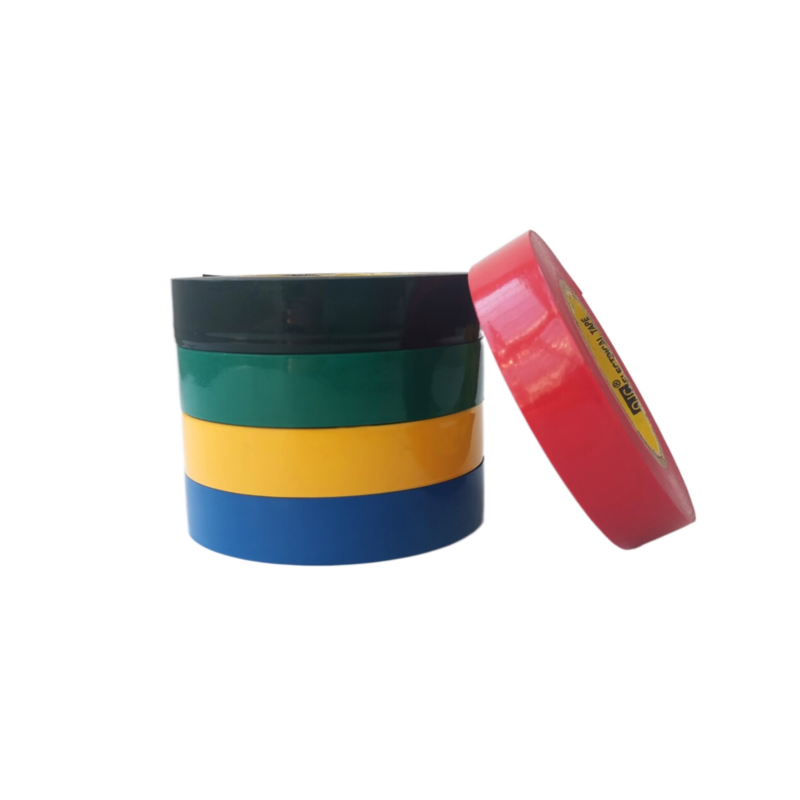

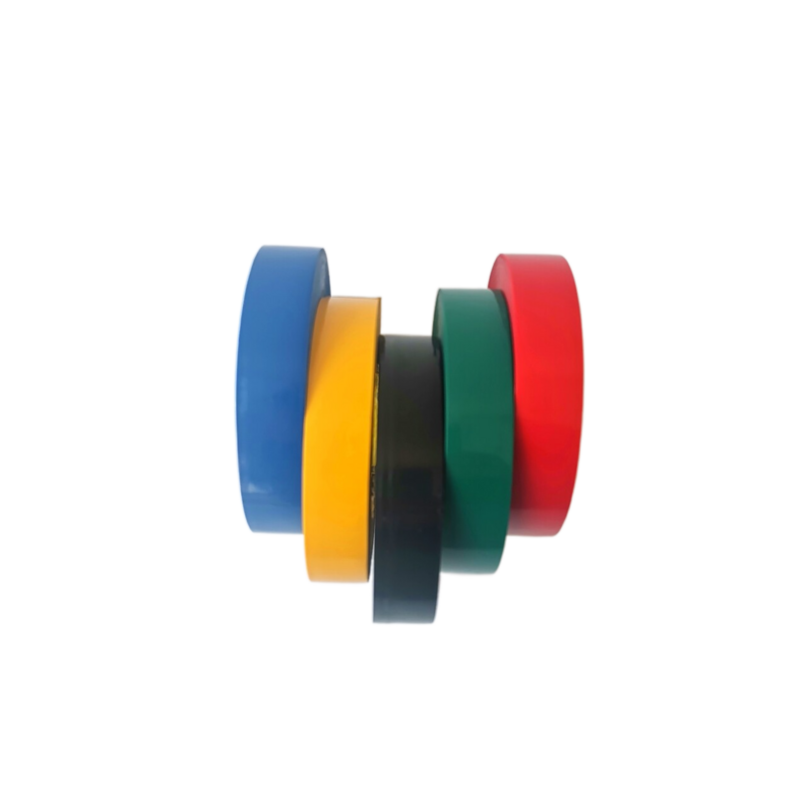

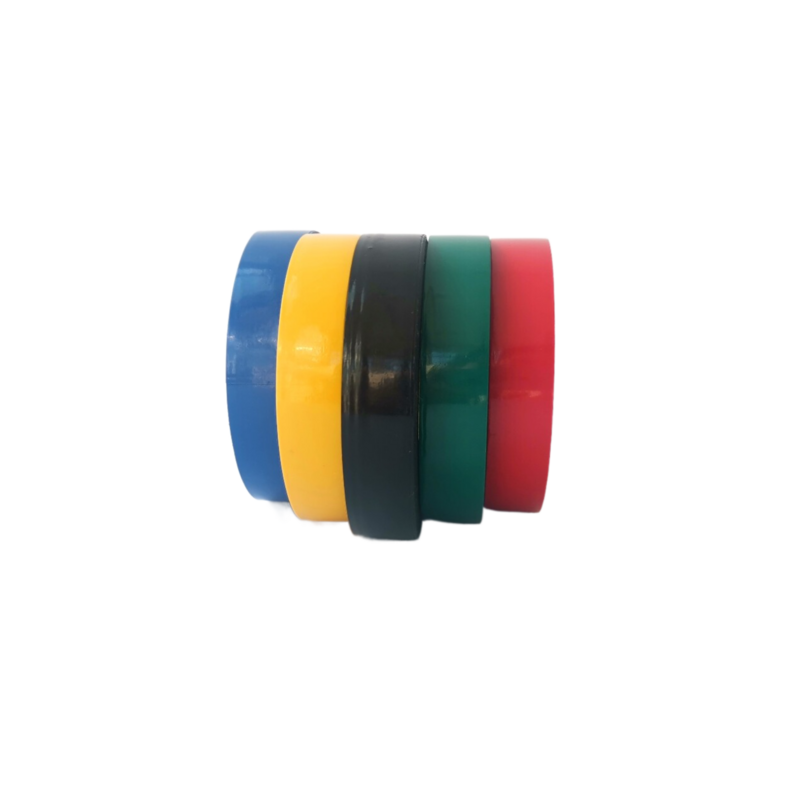

Flame Retardant Automotive Wire Harness PVC Tape

Code:XF-FR085 XF-FR100 XF-FR110 XF-FR120 XF -FR130

Color: Black Red White Green Blue Yellow Grey

XF-FR110 Flame retardant Automotive WireHarness PVC Tape is a PVC film produced by using DOP as plasticizer and coated with high-performance pressure-sensitive good insulation, voltage adhesive, with resistance, cold resistance, and other characteristics. Comply with ROHS directive.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Professional for automobile wire harness winding and bundling. It is best to wrap it in a semi-overlapping way. When wrapping the last layer, do not overpower it stretch, in case you tilt your head.

PRODUCT Technical indicators

SPECIFICATIONS： XF-FR110
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Total Thickness	0.11	mm	ASTM-D-1000
Tensile Strength	16	N/cm	ASTM-D-1000
Elongation at break	180	%	ASTM-D-1000
Voltage resistance	1kV/1min	---	JIS-C2110
Temperature Resistance	85	℃	ASTM-D-1000
Flame Resistance	＜2	S	ASTM-D-1000
Adhesion Strength
Dielectric Strength	1.2	N/cm	ASTM-D-1000
Volume Resistivity	1.0	N/cm	ASTM-D-1000
ContentofHeavy Metal
Lead、Cadmium	30	ppm	US EPA3052
Mercury、Chromium	10	ppm	US EPA3060A
Polybrominated biphenyl	10	ppm	US EPA3540C
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.

Code	Total thickness(mm)	Tensile Strength(N/cm)	Elongation at break(%)	Adhesion Strength to steel(N/cm)	Adhesion Strength to backing(N/cm)	Voltage resistance	Temperature Resistance(℃)	Flame Resistance(S)
XF-FR085	0.085	16	160	1.2	1.0	1kV/1 min	85	＜2
XF-FR100	0.10	16	170	1.2	1.0	1kV/1 min	85	＜2
XF-FR120	0.12	16	200	1.2	1.0	1kV/1 min	85	＜2
XF-FR130	0.13	20	220	1.2	1.0	1kV/1 min	85	＜2
