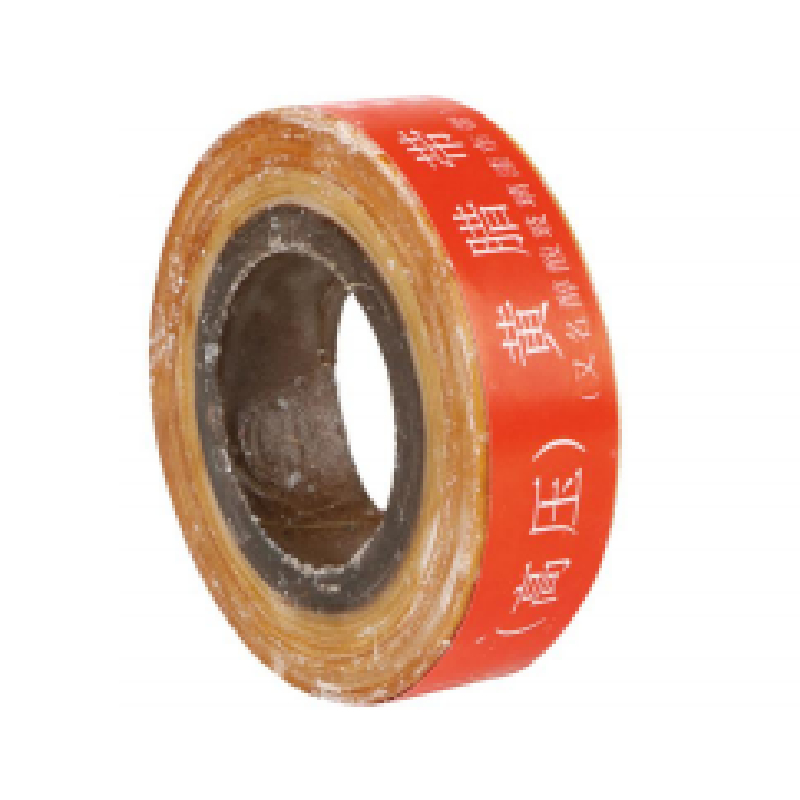

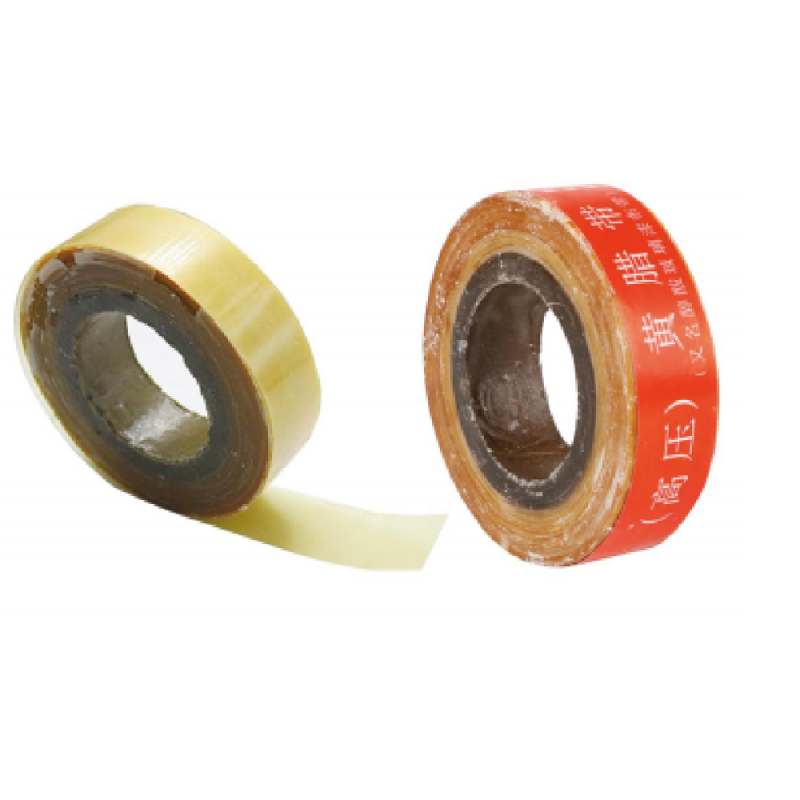

Fiberglass Yellow VarnishedInsulating Tape

Code: XF-HLD

Color: Yellow

XF-HLD is Mainly used in the humid environment of the wire connection process, the correct construction method is in the wire connection wrapped with yellow wax tape, and then in the outer package insulation tape or insulation self-adhesive tape, depending on the insulation and moisture-proof environment requirements of different levels and the use of different outer package layer.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Suitable for use in motors, electrical appliances, and transformer oil as packing insulation or liner insulation.

PRODUCT Technical indicators

SPECIFICATIONS： XF-HLD
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Thickness	0.15	mm	ASTM-D-1000
Tensile Strength	20	N/cm	ASTM-D-1000
Elongation at break	180	%	ASTM-D-1000
180℃ peel strength to steel	1.5	N/cm	ASTM-D-1000
Unwind force	2-6	N/19mm	ASTM-D-1000
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
