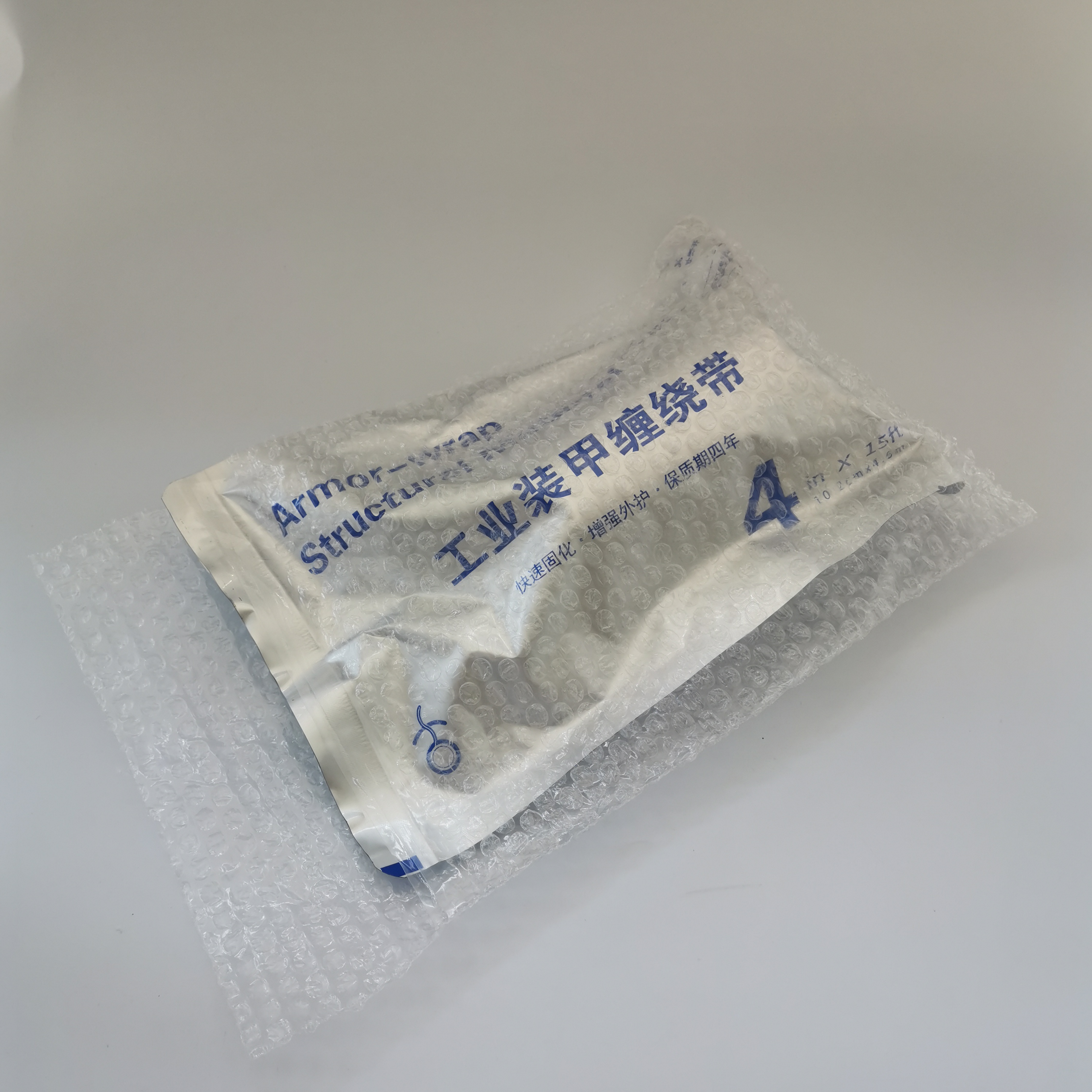

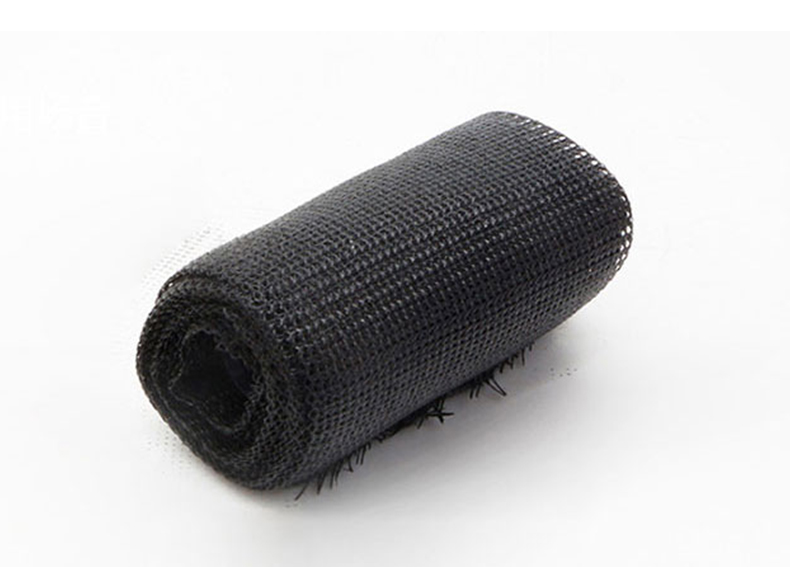

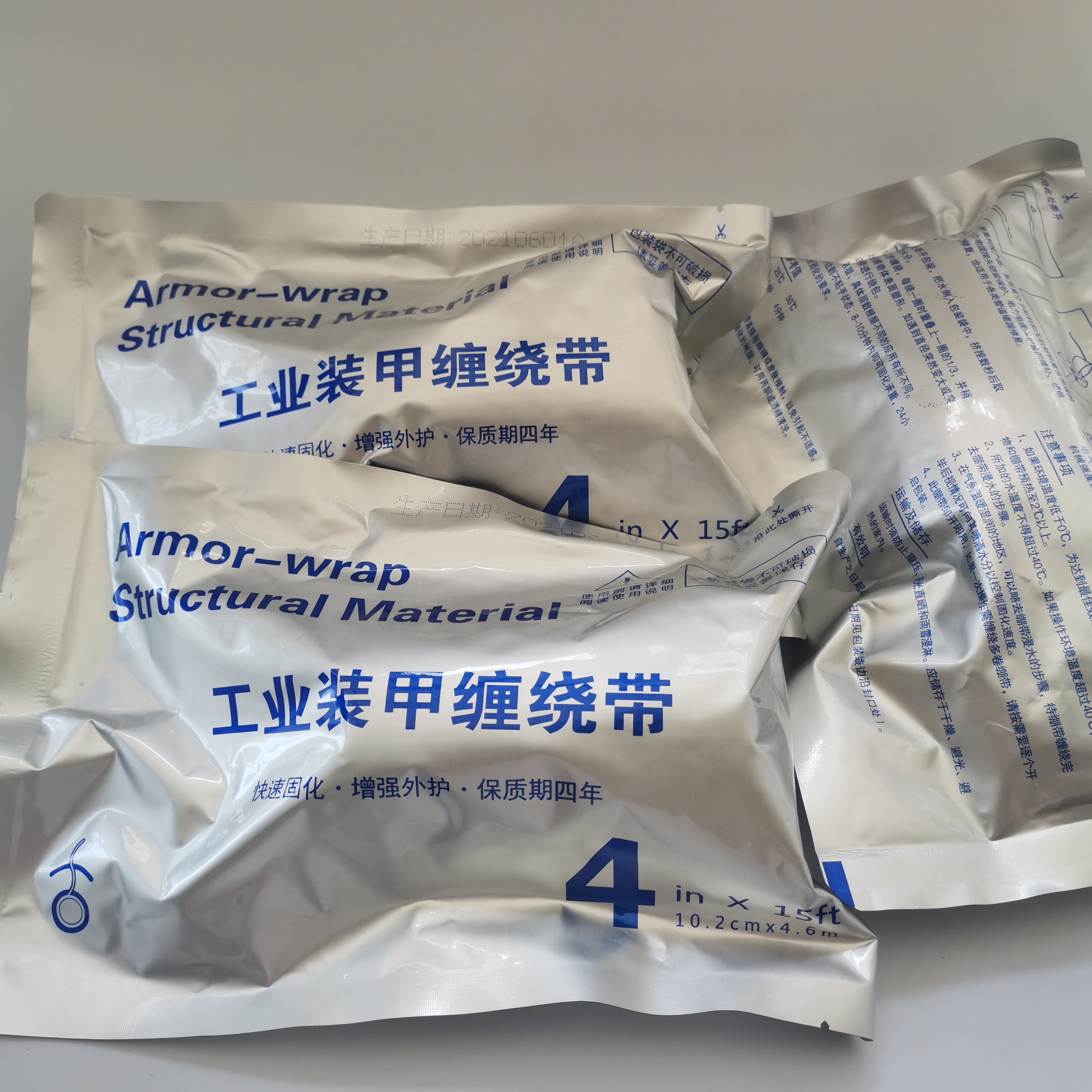

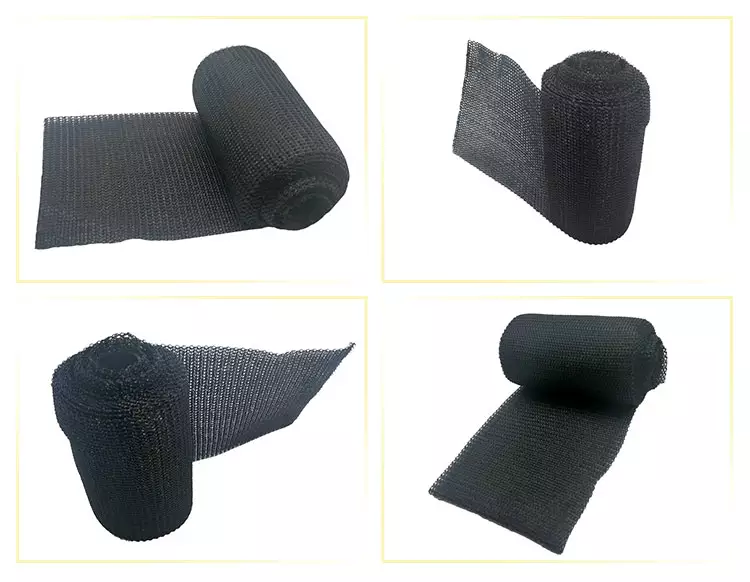

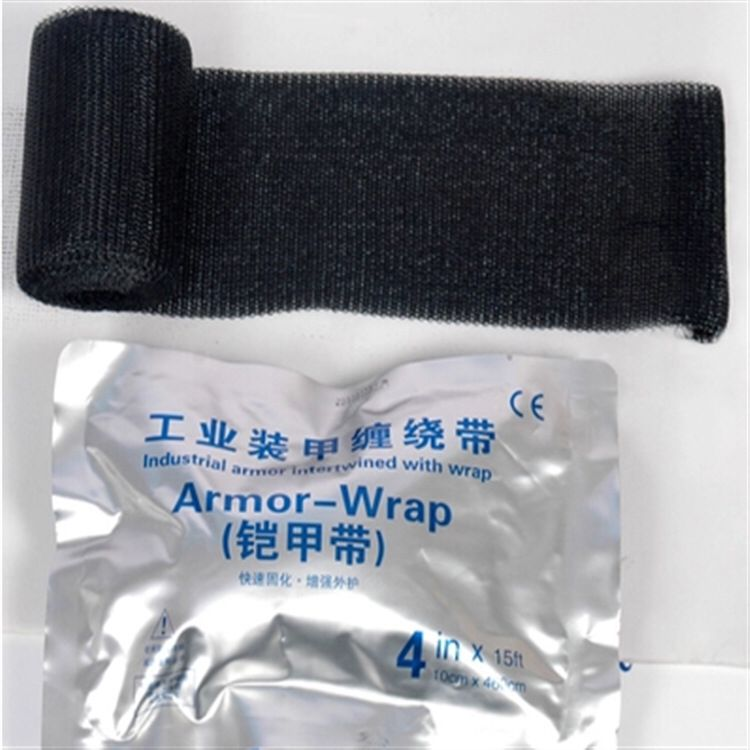

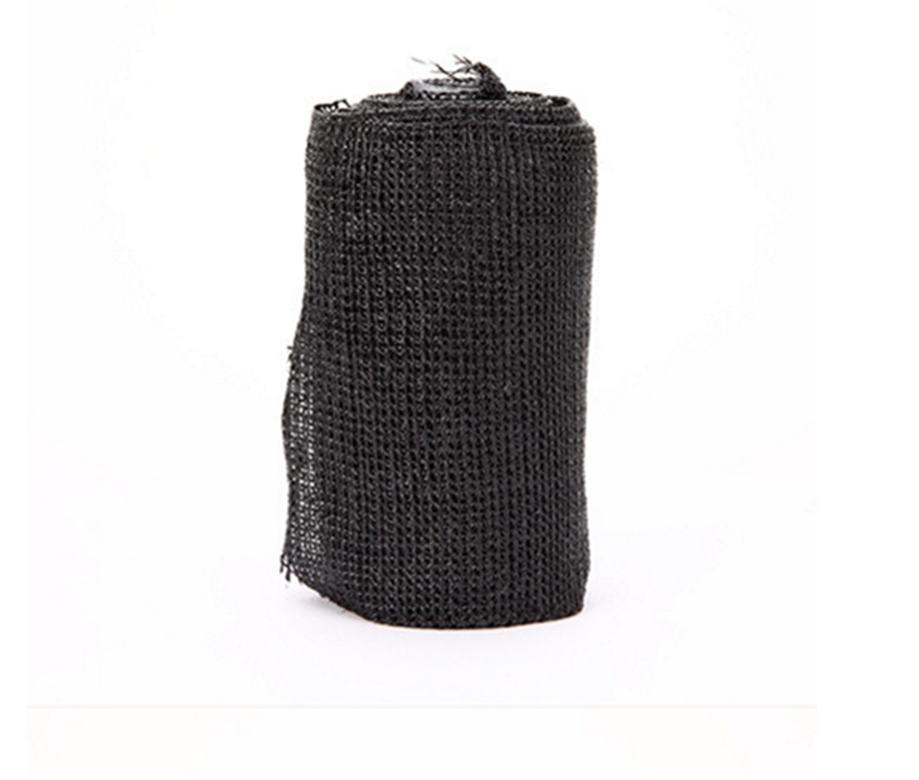

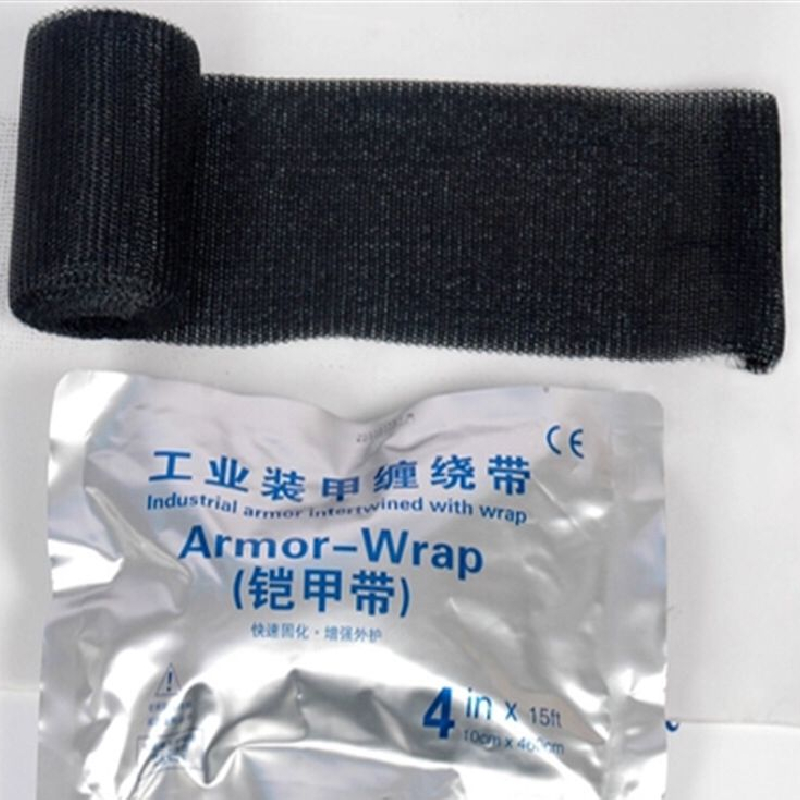

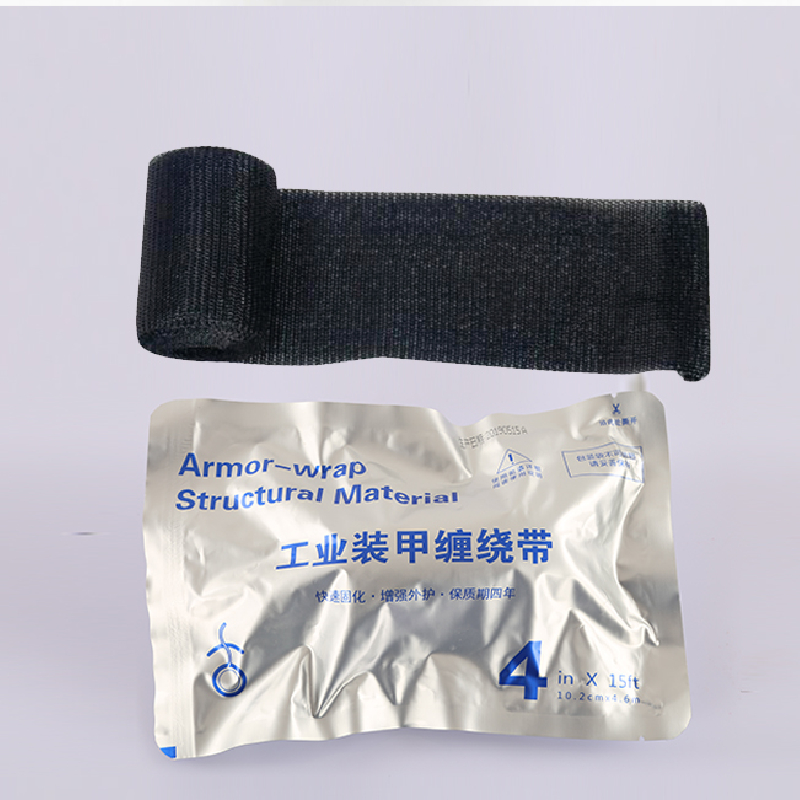

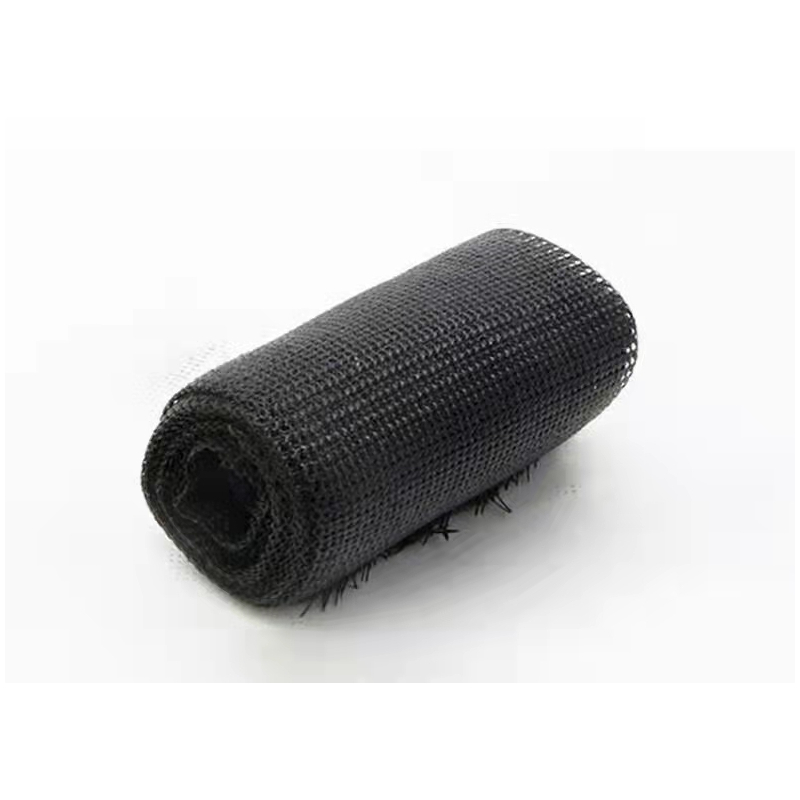

Industrial Amor Wrap

Code: XF-KJD

Color: Black

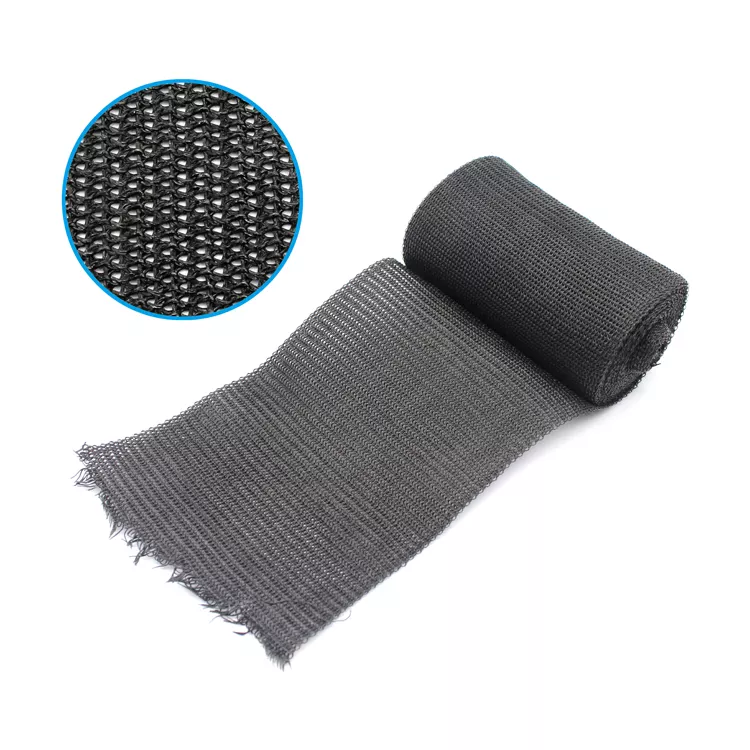

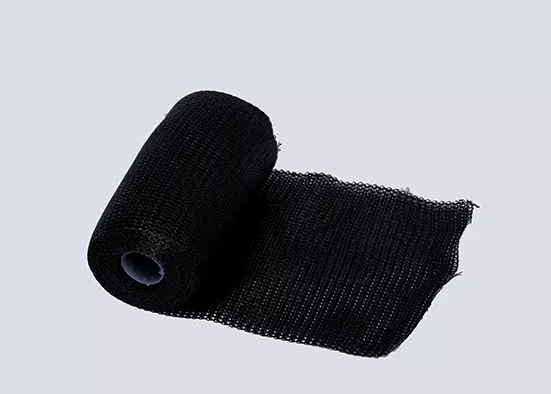

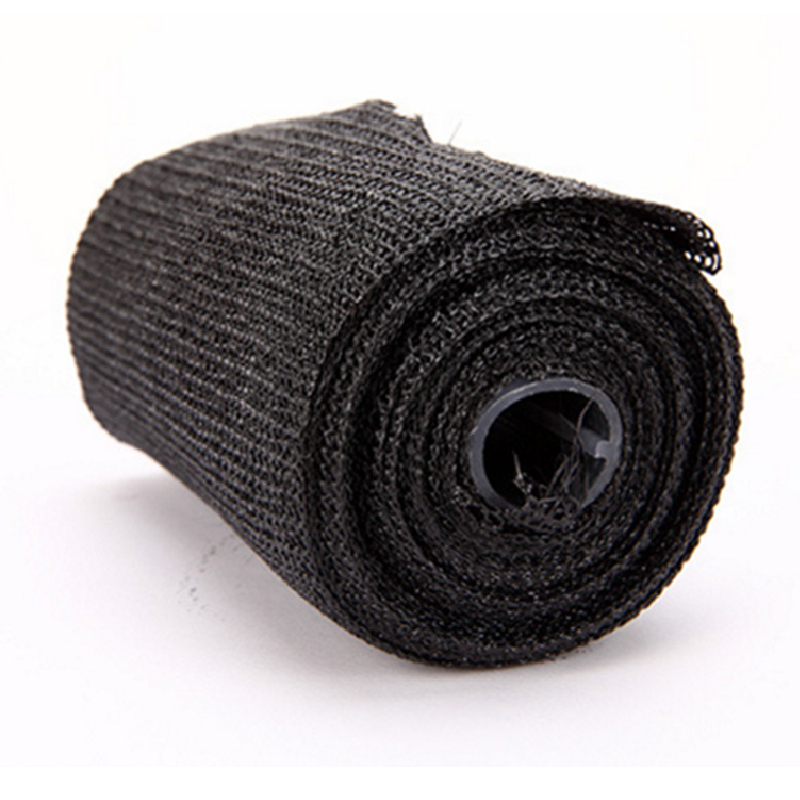

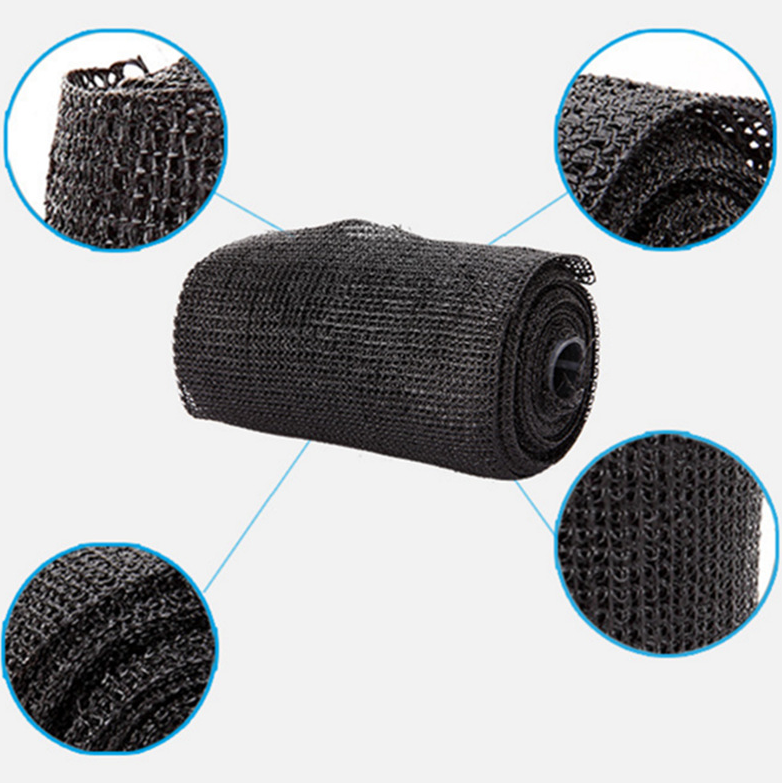

XF-KJD The special glass fiber is woven into the high-strength and high-elastic fabric with self-developed technology a glass fiber product made of water-cured polymer. lt has the advantages of fast curing in water, easy operation, and a wide range of applications and other characteristics, the structure formed after curing bending strength and tensile strength is high, non-toxic tasteless without stimulation, water resistance, and corrosion resistance.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

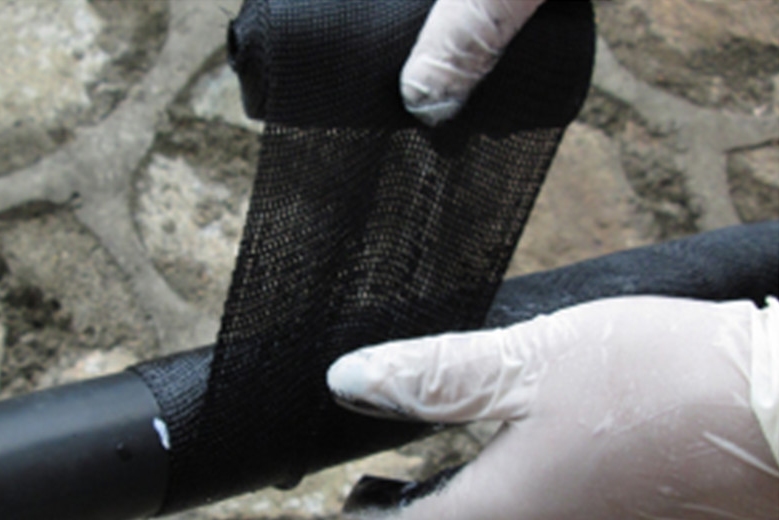

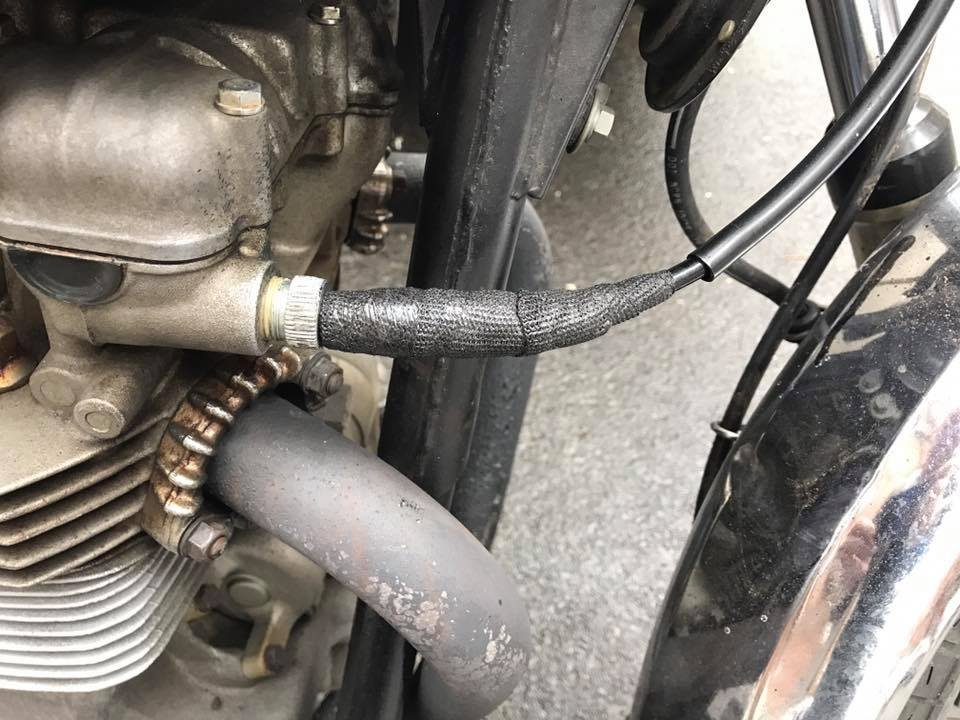

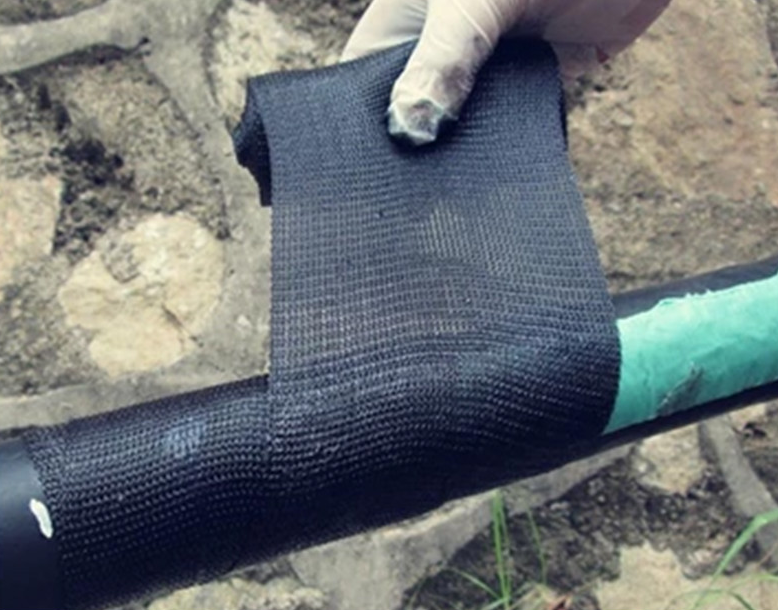

Suitable for power cable joint armor protection, power cable sheath repair, communication inflatable cable or non-inflatable cable sheath repair, and also suitable for all kinds of pipeline plugging repair.

PRODUCT Technical indicators

SPECIFICATIONS： XF-KJD
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Total Thickness	0.3	mm	ASTM-D-1000
Tensile Strength	20	N/cm	ASTM-D-1000
Elongation at break	180	%	ASTM-D-1000
180℃ peel strength to steel	1.5	N/cm	ASTM-D-1000
Unwind force	2-6	N/19mm	ASTM-D-1000
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
