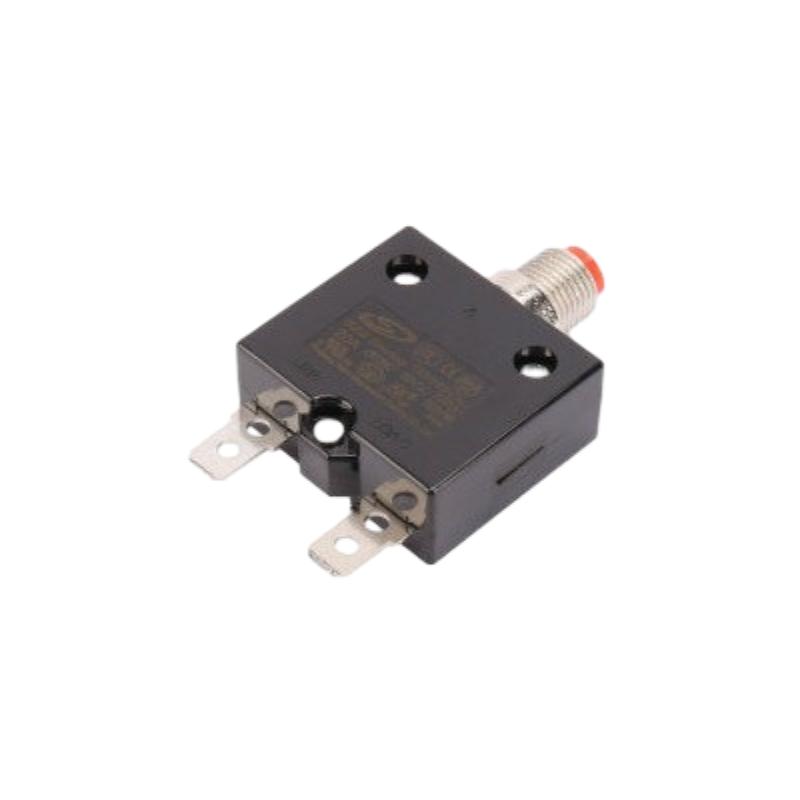

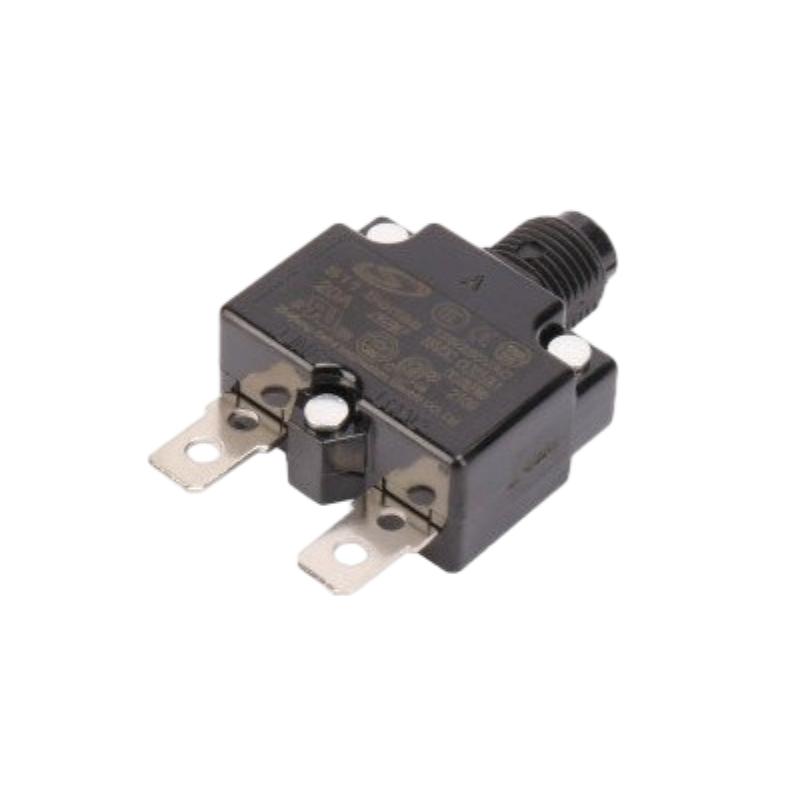

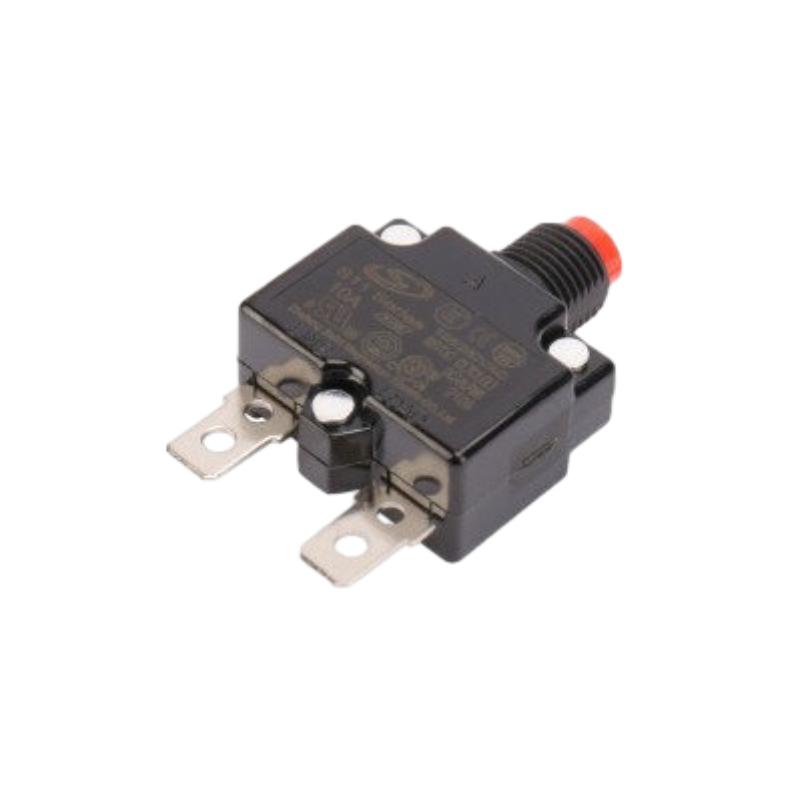

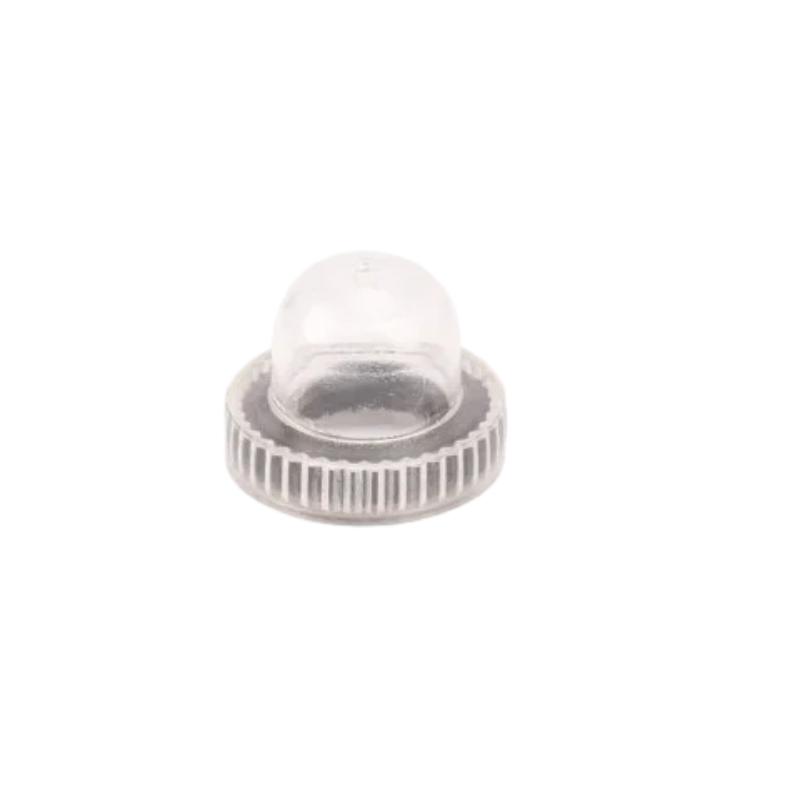

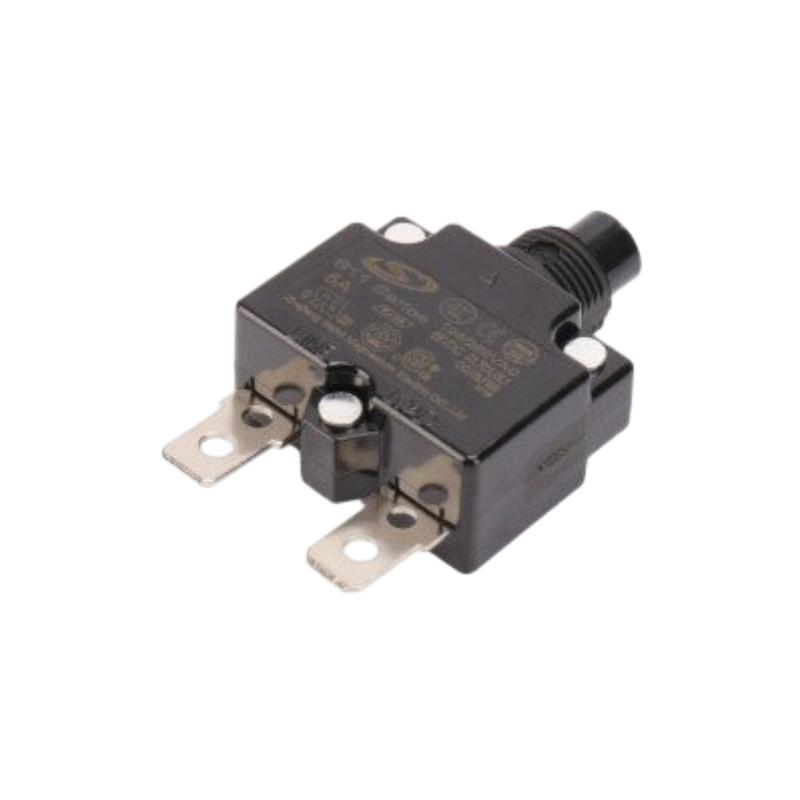

Overload Protector with waterproof cap

Overload Protector with waterproof cap

Rated Current:3A-30A/5A- 50A
Rated Voltage: UL Standard - ≤50 VDC TUV & CSA Standard - 125/250 VAC / 65VDC
Material: Bimetal, Metal, Bakelite,Plastic

Rated Frequency:50/60Hz

Color Button: Black/Red/White Reset: Manual Push Reset/Automatic Reset
Withstand Voltage Strength:1500VAC/1min
The leaked current:≤0.5mA
Insulation Resistance: 500VDC 1Min≥100MΩ
Rated breaking capacity: 6 times rated current
Rated short-circuit capacity：125VAC/1000A，250VAC/1000A





PDF DOWNLOAD
Details
Tags

Tripping Characteristics

The test environment temperature: 25℃±3℃

1000% of Rated Current: 0.12-0.7s” Seconds Trip

600% of Rated Current: 0.3-1.7s” Seconds Trip

200% of Rated Current: 5-35s” Seconds Trip

135% of Rated Current: Trip within 1 Hour

100% of Rated Current: Hold, No Trip

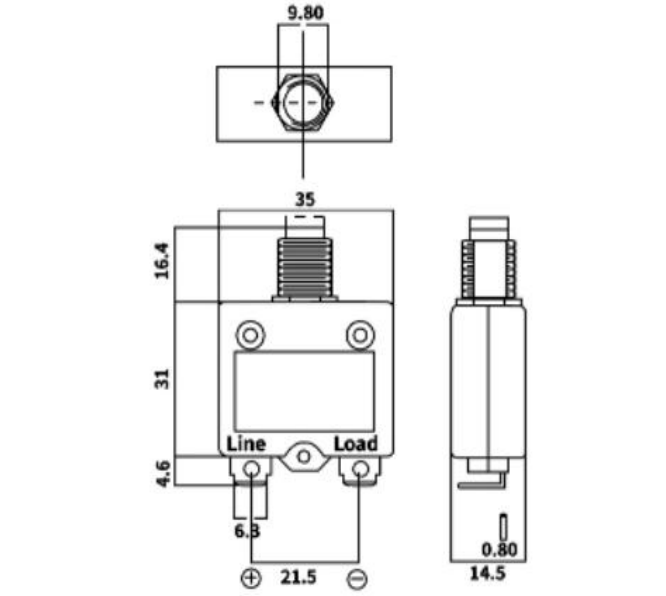

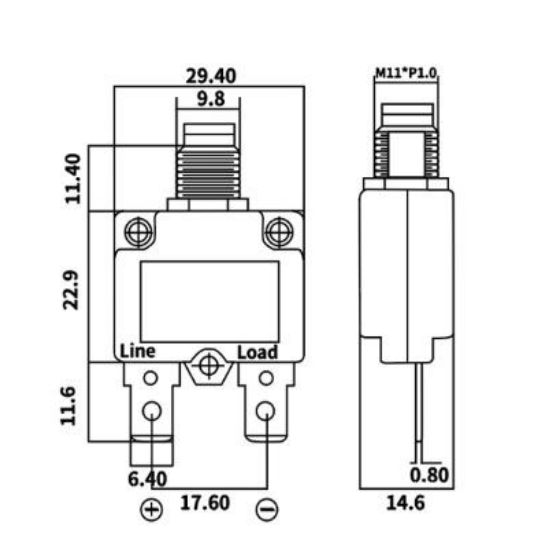

PRODUCT SIZE

  • 3A-16A

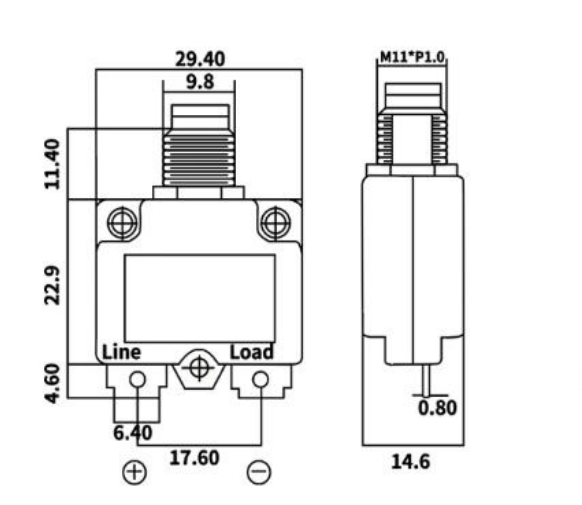

    S11 Short Terminal

  • 3A-16A

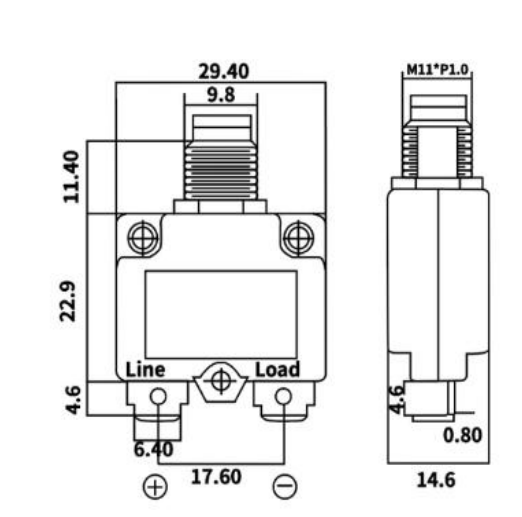

    S11 Straight Terminal

  • 3A-16A

    S11 Bended Terminal

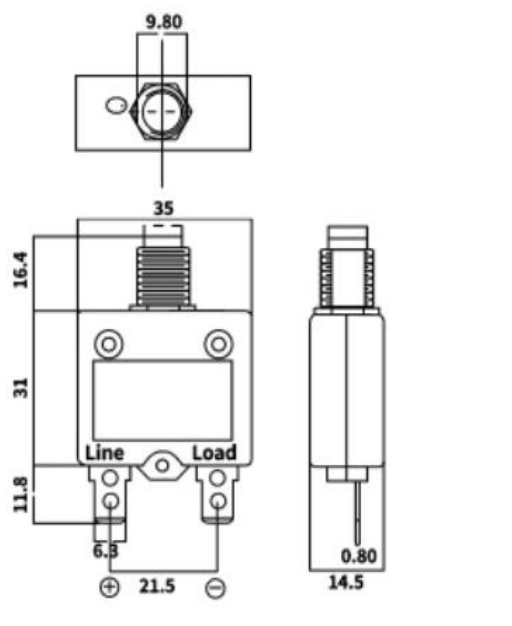

  • S22 Straight Terminal

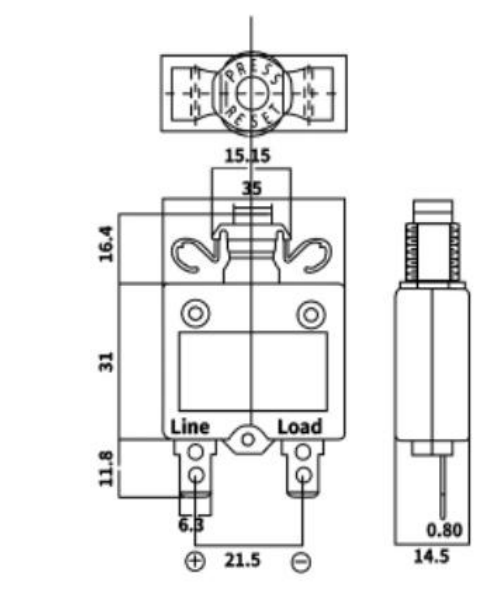

  • S22 Bended Terminal

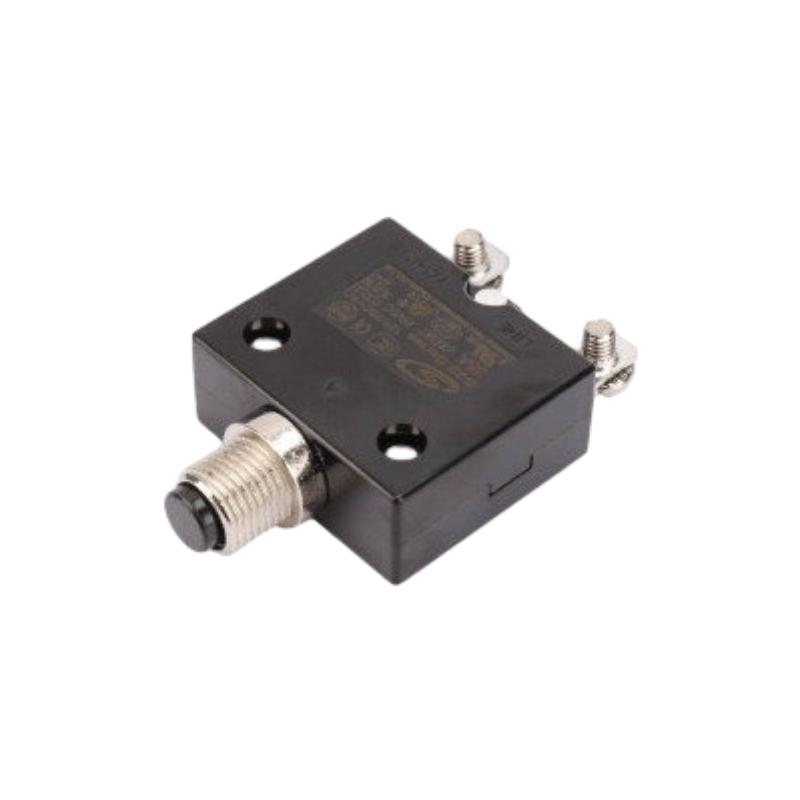

  • S22 Lug Bushing
