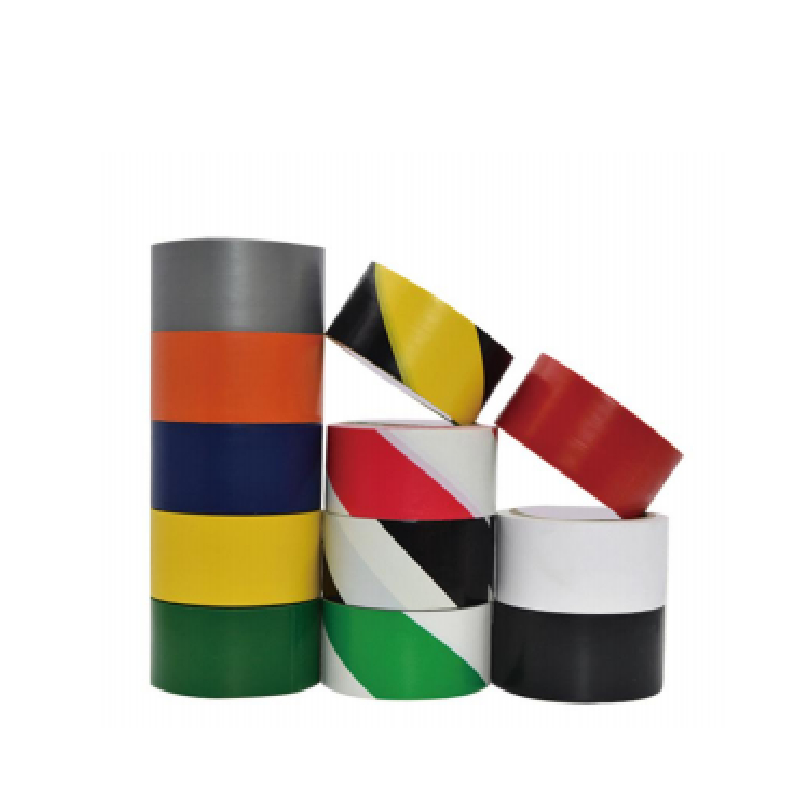

PVC Warning And Floor Marking Tape

Code: XF-JS13/XF-JS15/XF-JS17

Color: Black and white， White and red， White and green XF-JS13 Made of high-quality DOP plasticized PVC film coated with high-performance pressure-sensitive adhesive, it has excellent compliance, adhesion, and softness, with excellent warning identification.Cost-effective, suitable for general warning and marking purposes.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Professional ground area identification and protection.

PRODUCT Technical indicators

SPECIFICATIONS： XF-JS13
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Total Thickness	0.13	mm	ASTM-D-1000
Tensile Strength	20	N/cm	ASTM-D-1000
Elongation at break	180	%	ASTM-D-1000
180℃ peel strength to steel	1.5	N/cm	ASTM-D-1000
Unwind force	2-6	N/19mm	ASTM-D-1000
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.

Code	Total thickness(mm)	Tensile Strength(N/cm)	Elongation at break(%)	Adhesion Strenght to steel(N/cm)	Unwind force
XF-JS13	0.13	20	180	1.5	2-4
XF-JS15	0.15	22	180	1.5	2-4
XF-JS17	0.17	25	180	1.5	2-4
