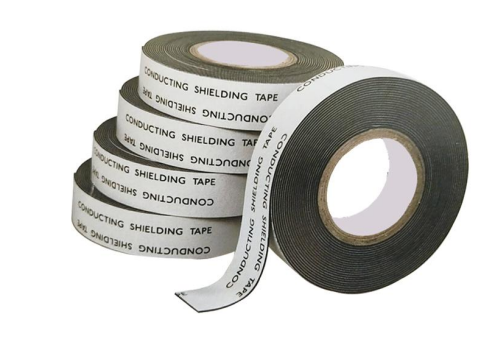

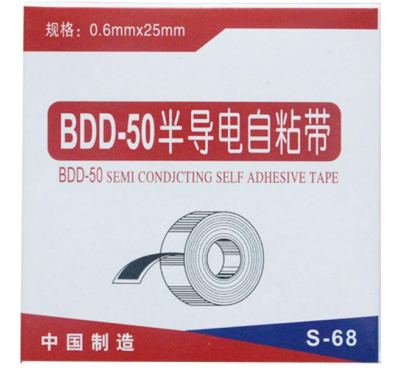

BDD semi conducting self-adhesive tape

Code: XF-BDD50-S68

Color: Black

XF-BDD50-S68 semiconducting tape is made of ethylene-propylene rubber insulation tape with good shape, no vulcanization, and stable performance. It has a wide temperature range and stable electrical conductivity and is compatible with cable shielding materials. Roll resistant, UV resistant, moisture resistant, and semi-conductive (low resistivity), easy to stretch. According to the different resistivity, it can be divided into BDD-20 and BDD-50.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

The uniform electric field under a high electric field reduces electric field stress; Extension of cable shielding layer above 5kV; As the shielding layer of solid dielectric insulated cable; Repairthe conductive layer. When the tape is used, wrap it in a semi-overlapping way. When wrapping around the edges of the connector.terminal, shield, and semi-conductive layer. stretch fully.

Note: stretch tape provides electrical conductivity without damaging the tape; the tape is not resistant to oil, so it cannot be used for oil-bearing joints and terminal cables.

PRODUCT Technical indicators

SPECIFICATIONS： XF_BDD50-S68
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Tensile strength	≥1.3	Mpa	GB/T528
Elongation at break	≥500	%	GB/T528
Volume Resistivity	≤1x10³	Ω·cm	GB/T3048.3
Self viscosity	No loosening	---	JB/T6468
Heat-resistant stress cracking	No cracking	---	JB/T6468
Heat Resistance	13.0	℃	JB/T6468
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
