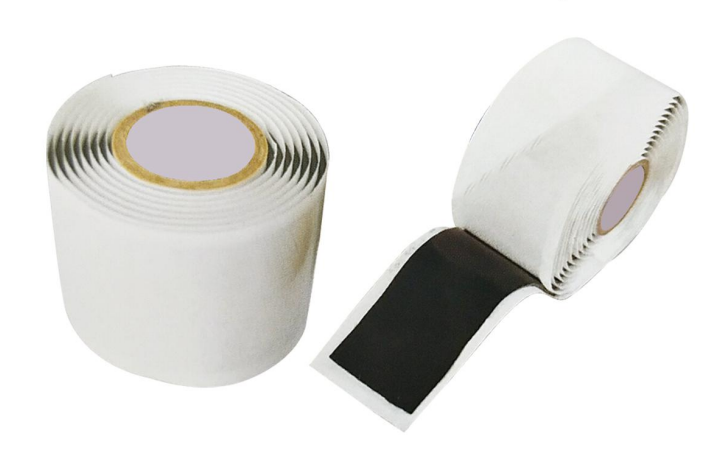

Butyl Rubber Tape

Code: XF-BT
Color: Gray black white

Butyl rubber tape is made of butyl rubber polyisobutylene and other main raw materials, according to the special production formula, using the latest patented technology, select high-quality special polymer materials(imported), through the special process of production of environmental protection solvent-free sealing adhesive material.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT DESCRIPTION

Our Advantages	Excellent mechanical properties	high tensile strength and adhesive strength
	Stable chemical property	Excellent chemical resistance, weather resistance, and corrosion resistance
	Reliable application performance	Good adhesion waterproofing, sealing, low-temperature resistance, and conformability
Main Material	butyl rubber
Thickness	0.8mm - 4.00mm
Width	5cm - 60cm
Length	3m - 20m
Color	Black or White
Bond strength	0.6 N/mm - 0.85 N/mm
Thermal endurance	-40°C - 90°C
Water tolerance	no change soaked in 70 °C temperature for 168 hours
Ageing resistance	over 20 years

PRODUCT APPLICATION

• The overlapping of steel roofing steel tiles and lighting panels, and the sealing of the joints of the falling gutters
• Door and window, concrete roof, ventilation pipe seal waterproof
• PC board, sun board.Waterproof seal of endurance board.
• Metal roofing, color steel tile, sun roofing.window sill, box truck, container, train, motorcar, etc.
• Building bridge waterproof sealing shock absorption
• Clean room waterproof seal
• vacuum glass,glass steel curtain wall waterproof seal

PRODUCT Technical indicators

SPECIFICATIONS： XF-BT
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Thickness	1	mm	GAM-C792-93
Heat Resistance	100℃ 2h No dripping/No cracking	---	GAM-C792-93
Low TemperatureFiexibility	-40℃ 72h No cracking on the surface	---	JAM-C734-01
WvP	0.3	g/n²(24h)	JAM-C736-00
Elongation	600	%	GB/T-12952-91
Tensile Strngth	125	kPA	JAM-C719-93
Peeling Force	12	N/cm	JAM-IX3330-02
Shearing Force	40	N/cm	GB/T-12952-91
Corrosion	No corrosion	---	JAM-D925
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
