PRODUCT APPLICATION
Suitable for bolt connection, lighting circuit connection, ground connection, motor lead cable joint connection, and electrical insulation and sealing moisture-proof.
PRODUCT Technical indicators
|
SPECIFICATIONS： XF-FRJ20 |
|||
|
PROPERTY |
VALUE |
UNIT |
TEST METHOD |
|
Physical property |
|||
| Thickness | 0.76 | mm | ASTM-D-4325 |
| Tensile strength | 120 | psi | ASTM-D-4325 |
| Elongation at break | 300 | % | ASTM-D-4325 |
| Flame resistance | ＜2 | S | ASTM-D-1000 |
| Electrical property | |||
| Dielectric Strength | 14 | kV/mm | ASTM-D-4325 |
| Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use. | |||
PRODUCT General specifications
| STANDARD SIZES: | ||
|
Width |
Length |
Thickness |
|
19mm |
3.3m | 0.76mm |
| 25mm | 6.7m | 0.76mm |
| 50mm | 6.7m | 0.76mm |
| Other sizes and cores are available. Contact factory | ||

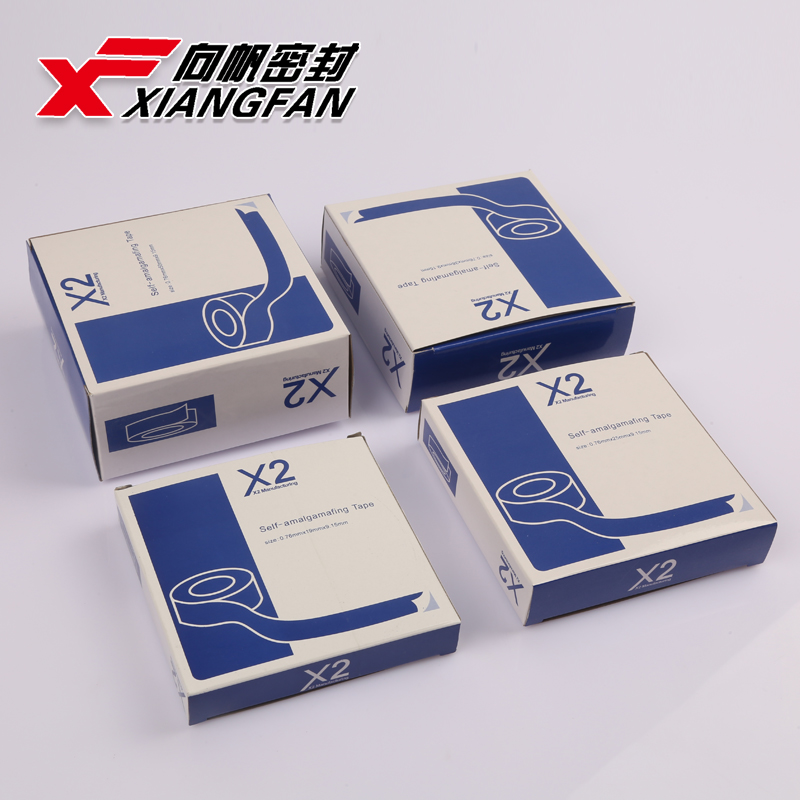

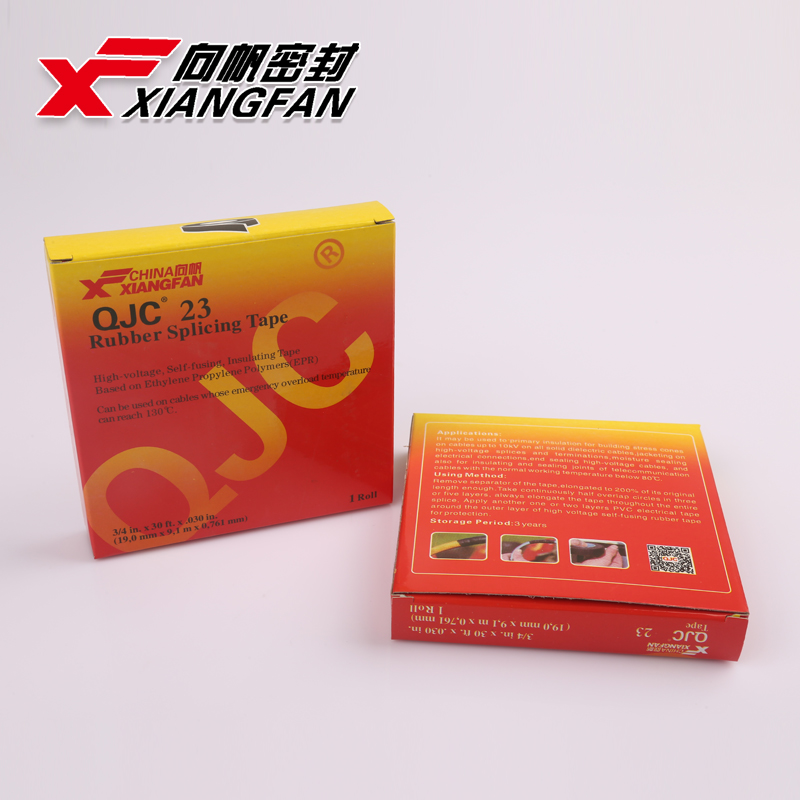

PRODUCT PACKAGE
fire retardant tape
flame resistant tape
flame retardant adhesive tape
flame retardant aluminum foil tape
flame retardant tapes
