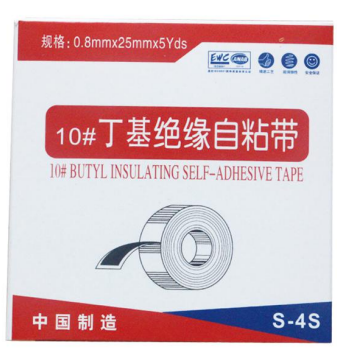

Medium Voltage Tape

Code: XF-10#(S-4S)
Color: Black

XF-10#(S-4S) Mediumvoltagerubber-insulating tape is a kind of self-adhesive isobutylene insulating tape with excellentshapefollowingandelectricalproperties. Self-adhesive mediumvoltageinsulation with a layer of black paper, its excellent tensile properties, can meet the rapid packaging, with insulation, moisture, and stability "corrosion characteristics.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Main insulation restoration of 600v-69kv solid dielectric cable: When a stress cone is made on solid dielectric cable up to 69kV, it is the main insulation; Jacket restoration of intermediate joint and terminal; Moisture-proof seals for electrical connections:Businsulation: Cable end seal. When wrapping, stretch the tape so that it is 3/4 of the width before stretching. Wrapped PVC electrical tape outside to provide mechanical protection.

PRODUCT Technical indicators

SPECIFICATIONS： XF-10#(S-4S)
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Thickness	0.80	mm	ASTM-D-4325
Tensile Strength	300	psi	ASTM-D-4325
Elongation at break	700	%	ASTM-D-4325
range of working temperature	-40~90	℃	ASTM-D-4325
Temperature range	130	℃	ASTM-D-4325
Water Absorption	0.44	%	ASTM-D-570
0zone resistanCe	PASS	---	ASTM-D-4325
UV resistance	PASS	---	ASTM-D-4325
Electrical property
Dielectric Strength	28	kV/mm	ASTM-D-4325
Dielectric Constant	2.7	---	ASTM-D-4325
Dielectric Factor	0.02	---	ASTM-D-4325
Volume Resistivity	10¹⁶	Ohm-cm	ASTM-D-4325
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
