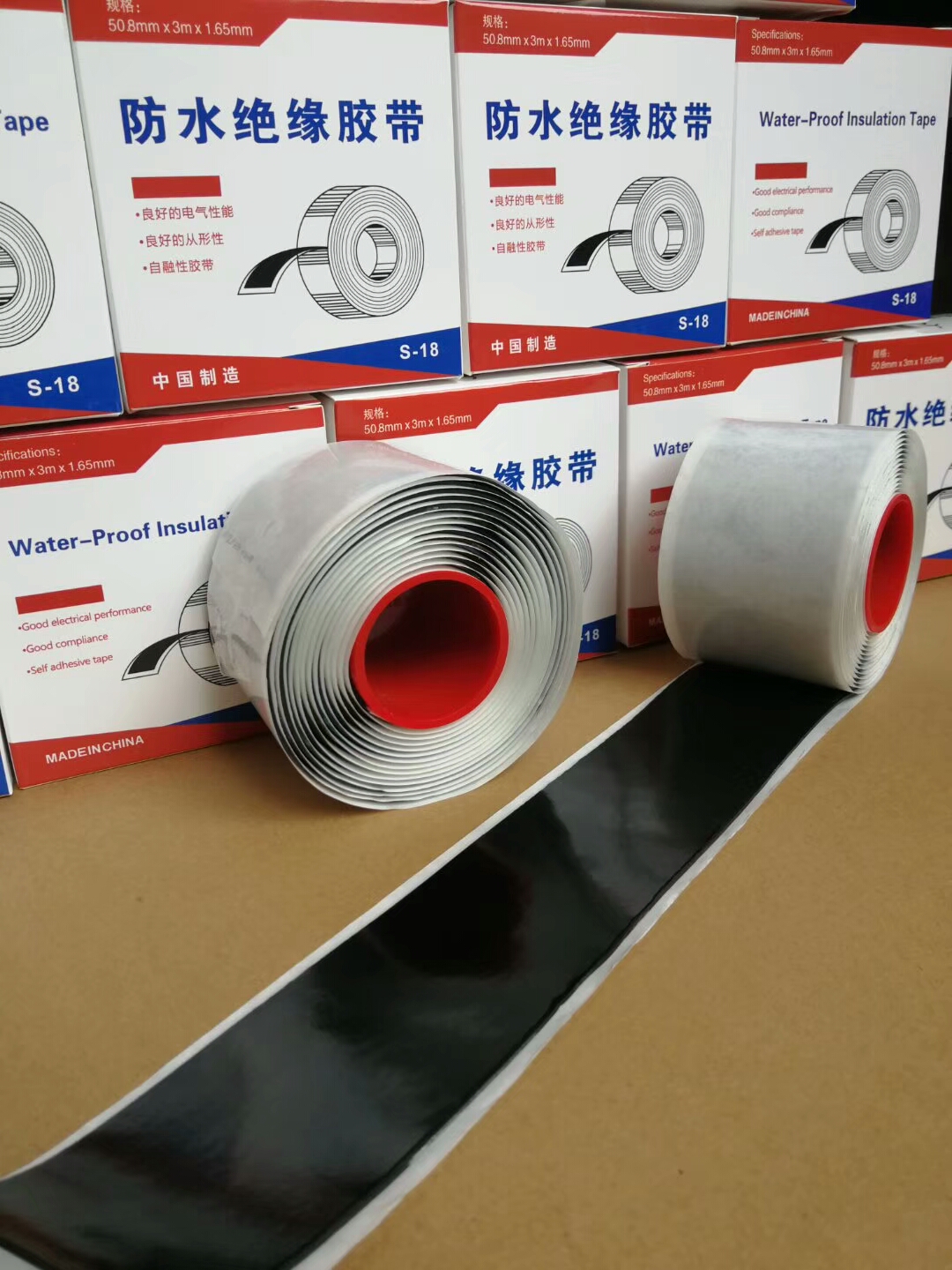

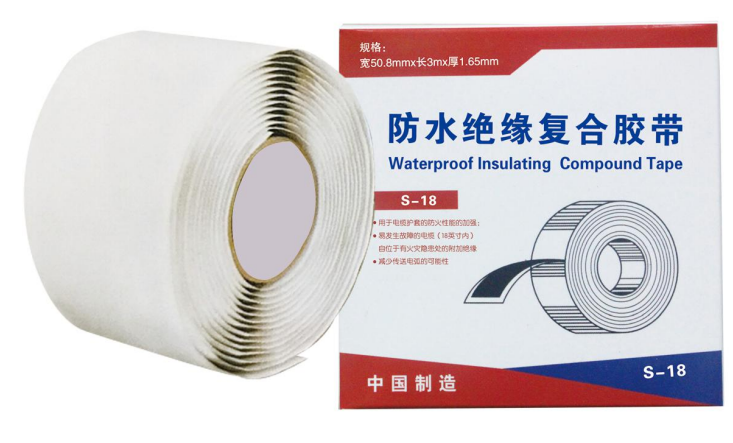

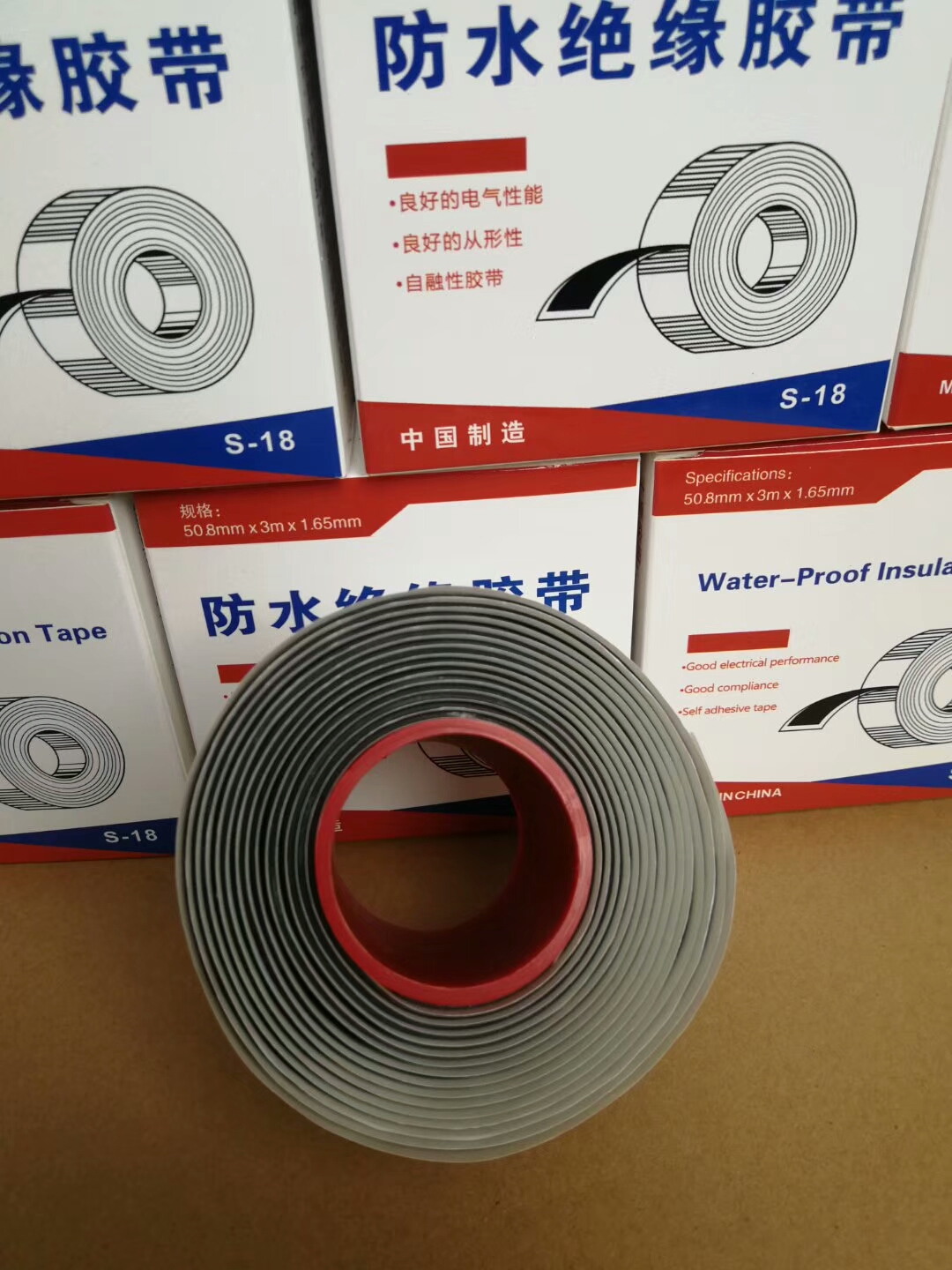

Rubber waterproof composite tape

Code: XF-S18

Color: Black

XF-S18 Rubber waterproof composite tape is a kind of self-adhesive, good shape, good electrical insulation, and waterproof sealing tape. lt is based on high-quality aging-resistant synthetic rubber with a strong adhesive layer and good temperature resistance.

CONTACT NOW PDF DOWNLOAD

Details

Tags

PRODUCT APPLICATION

Used for waterproof sealing of communication equipment base station, antenna, and feeder connection; Repair the outer sheath of cables and cable joints; Apply to 2kVand below main insulation recovery; Waterproof underground cable; Busbar waterproofing and protection.

PRODUCT Technical indicators

SPECIFICATIONS： XF_S18
PROPERTY	VALUE	UNIT	TEST METHOD
Physical property
Tensile strength	≥1.7	Map	GB/T 528
Elongation at break	≥500	%	GB/T 528
Heat Resistance	100	℃	JB/T 6468
Dielectric Strength	≥20	kV/mm	GB/T 1695
Volume Resistivity	≥1x10¹⁴	Ω·cm	GB/T 1692
Dielectric loss tangent	≤0.05	---	GB/T 1693
Dielectric Constant	≤5.0	---	GB/T 1693
Waterproof property. (1 standard atmospheric pressure)	No leakage at 24℃	---	Enterprise standard
Waterproof property. (1 standard atmospheric pressure)	No leakage at 24℃	---	Enterprise standard
Data in the table represent average test results and are not to be used for specification purposes. The product user should make his l her own tests to determine the product.it's suitable for the intended use.
